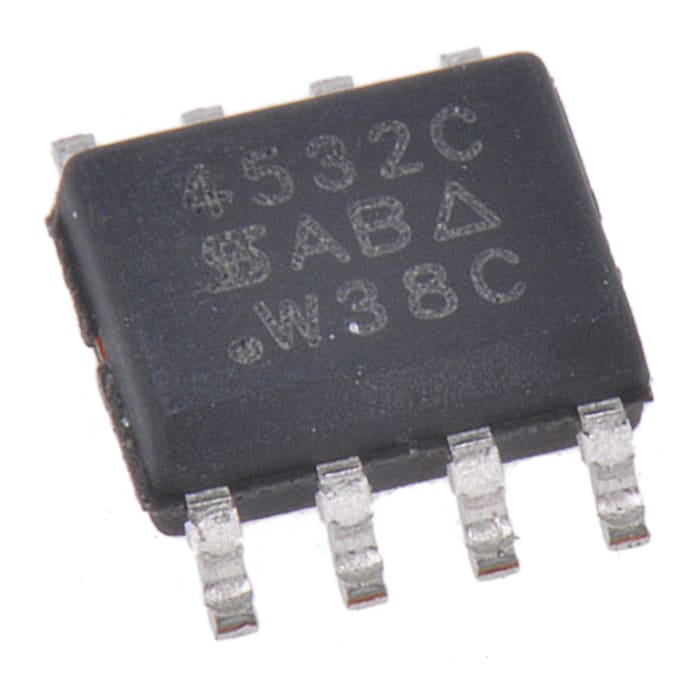

Dual N/P-Channel MOSFET, 3 A, 3.7 A, 30 V, 8-Pin SOIC Vishay SI4532ADY-T1-E3

RS Stock No.: 710-4720Brand: VishayManufacturers Part No.: SI4532ADY-T1-E3
brand-logo
View all in MOSFETs

Technical documents

Specifications

Brand

Vishay

Channel Type

N, P

Maximum Continuous Drain Current

3 A, 3.7 A

Maximum Drain Source Voltage

30 V

Package Type

SOIC

Mounting Type

Surface Mount

Pin Count

8

Maximum Drain Source Resistance

53 mΩ, 80 mΩ

Channel Mode

Enhancement

Minimum Gate Threshold Voltage

1V

Maximum Power Dissipation

1.13 W

Transistor Configuration

Isolated

Maximum Gate Source Voltage

-20 V, +20 V

Width

4mm

Transistor Material

Si

Typical Gate Charge @ Vgs

10 nC @ 10 V, 8 nC @ 10 V

Number of Elements per Chip

2

Maximum Operating Temperature

+150 °C

Length

5mm

Minimum Operating Temperature

-55 °C

Height

1.55mm

Product details

Dual N/P-Channel MOSFET, Vishay Semiconductor

MOSFET Transistors, Vishay Semiconductor
