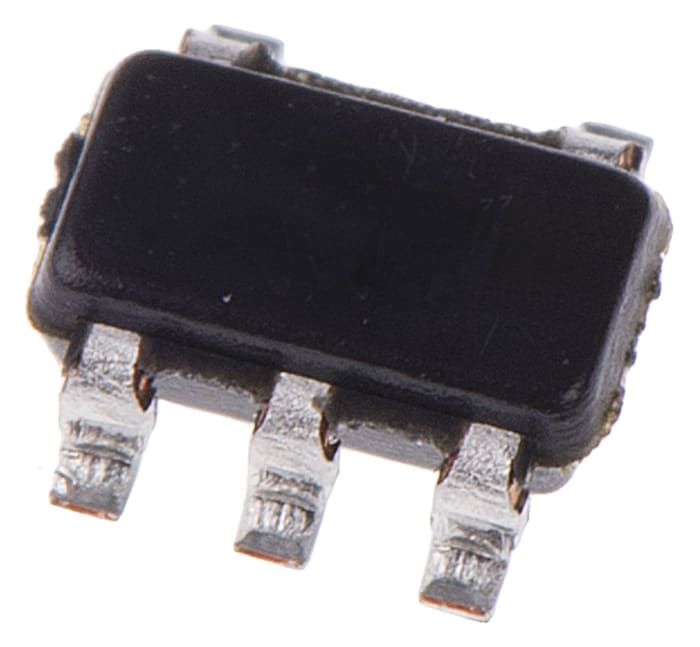

TSV911AILT STMicroelectronics, Operational Amplifier, 8 MHz, 5-Pin 5.5V SOT-23

Name: TSV911AILT STMicroelectronics, Operational Amplifier, 8 MHz, 5-Pin 5.5V SOT-23
Brand: STMicroelectronics
SKU: 0179070
Availability: LimitedAvailability

RS Stock No.: 179-070Brand: STMicroelectronicsManufacturers Part No.: TSV911AILT

View all in Op Amps

Technical Documents

Specifications

Brand

STMicroelectronics

Product Type

Operational Amplifier

Mount Type

Surface

Package Type

SOT-23

Number of Channels

Pin Count

GBP - Gain Bandwidth Product

8MHz

Maximum Supply Voltage

5.5V

Minimum Supply Voltage

Input Bias Current

100 pA

Minimum Operating Temperature

-40°C

Vos - Input Offset Voltage

3 mV

Slew Rate

4.5V/μs

Maximum Operating Temperature

125°C

Series

TSV911A

Height

1.3mm

Length

3mm

Standards/Approvals

RoHS

Automotive Standard

AEC-Q100

Output Current

16mA

Input Offset Current

100 pA

Product Details

TSV91x, TSV91xA, Rail-to-Rail I/O 8 MHz Operational Amplifiers

The TSV911 (Single), TSV912 (Dual) and TSV914 (Quad) operational amplifiers offer low voltage operation and an excellent speed/power consumption ratio.

Low power consumption: 820 μA typical
Unity gain stability
High output current: 35 mA
Power supply operation from 2.5 V to 5.5 V
Low input bias current, 1 pA typical
Low input offset voltage: 1.5 mV max. (A grade)
ESD high tolerance: 5 kV

Ideate. Create. Collaborate

JOIN FOR FREE

No hidden fees!

Download and use our DesignSpark software for your PCB and 3D Mechanical designs
View and contribute website content and forums
Download 3D Models, Schematics and Footprints from more than a million products

Click here to find out more

You may be interested in

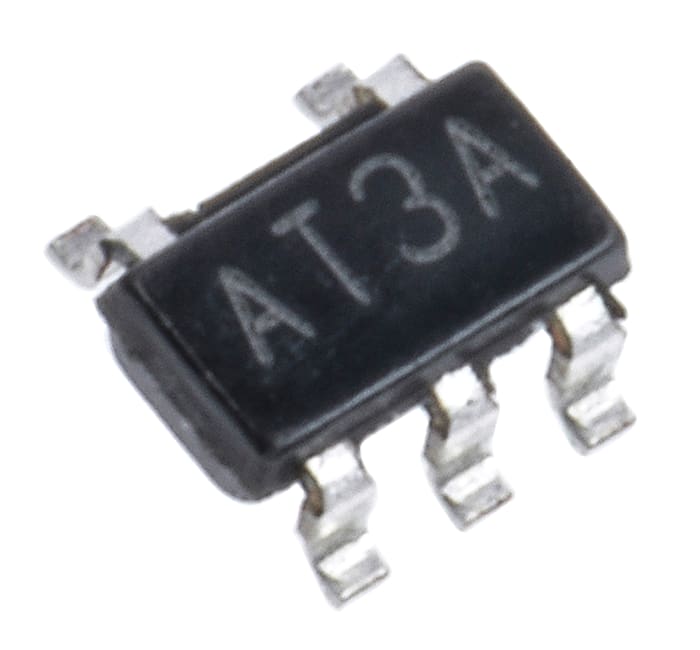

LMV796MF/NOPB Texas Instruments, Operational Amplifier, 17 MHz, 5-Pin 5.5V SOT-23Brand: Texas Instruments
