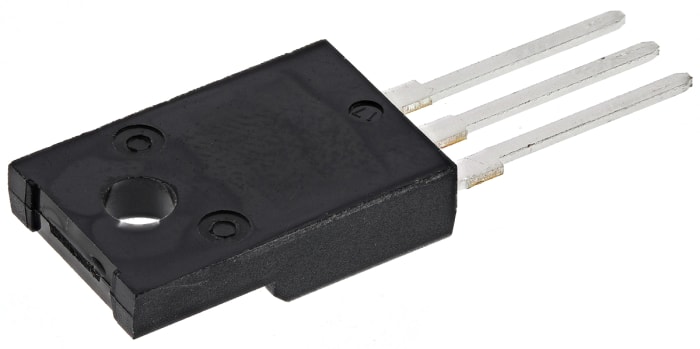

STMicroelectronics SuperMESH Type N-Channel Power MOSFET, 5.2 A, 800 V Enhancement, 3-Pin TO-220FP STP7NK80ZFP

Brand

Product Type

Power MOSFET

Channel Type

Type N

Maximum Continuous Drain Current Id

5.2A

Maximum Drain Source Voltage Vds

800V

Series

SuperMESH

Package Type

TO-220FP

Mount Type

Through Hole

Pin Count

3

Maximum Drain Source Resistance Rds

1.8Ω

Channel Mode

Enhancement

Maximum Gate Source Voltage Vgs

30V

Forward Voltage Vf

1.6V

Maximum Power Dissipation Pd

125W

Minimum Operating Temperature

-55°C

Typical Gate Charge Qg @ Vgs

40nC

Maximum Operating Temperature

150°C

Length

10.4mm

Standards/Approvals

JEDEC JESD97

Width

4.6mm

Height

9.3mm

Automotive Standard

No
