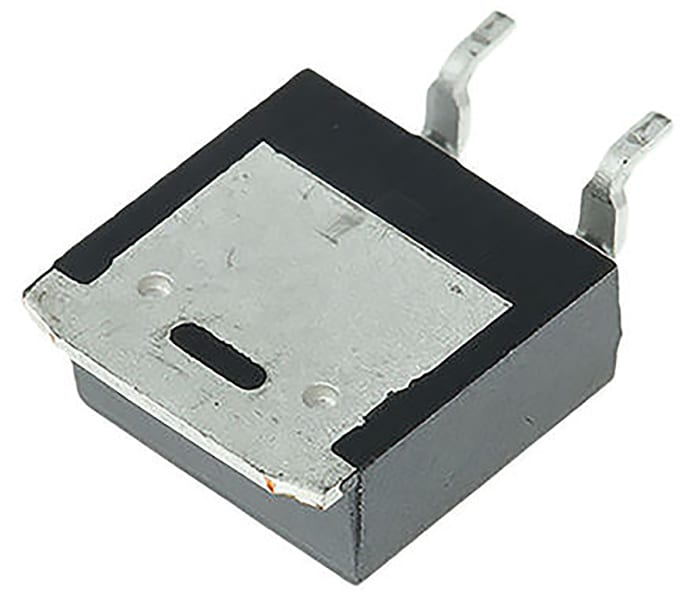

STMicroelectronics DeepGate, STripFET Type N-Channel MOSFET, 80 A, 40 V Enhancement, 3-Pin TO-252

RS Stock No.: 791-9308PBrand: STMicroelectronicsManufacturers Part No.: STD80N4F6
brand-logo
View all in MOSFETs

Technical documents

Specifications

Brand

STMicroelectronics

Product Type

MOSFET

Channel Type

Type N

Maximum Continuous Drain Current Id

80A

Maximum Drain Source Voltage Vds

40V

Package Type

TO-252

Series

DeepGate, STripFET

Mount Type

Surface

Pin Count

3

Maximum Drain Source Resistance Rds

6mΩ

Channel Mode

Enhancement

Maximum Power Dissipation Pd

70W

Minimum Operating Temperature

-55°C

Typical Gate Charge Qg @ Vgs

36nC

Forward Voltage Vf

1.3V

Maximum Operating Temperature

175°C

Height

2.4mm

Length

6.6mm

Standards/Approvals

No

Automotive Standard

AEC-Q101

Product details

N-Channel STripFET™ DeepGate™, STMicroelectronics

STripFET™ MOSFETs with a wide breakdown voltage range offer ultra-low gate charge and low on-resistance.

MOSFET Transistors, STMicroelectronics
