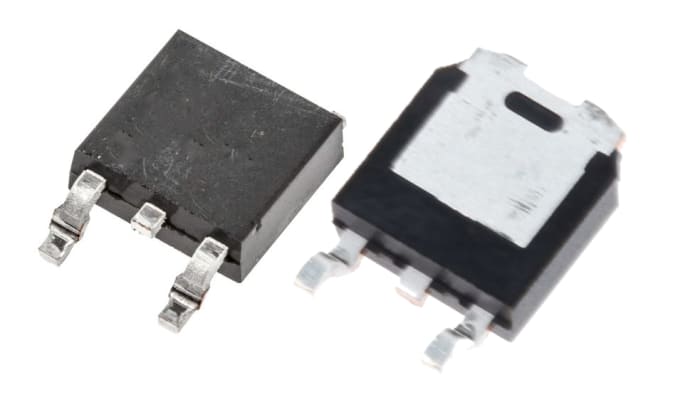

STMicroelectronics Type N-Channel MOSFET, 4 A, 800 V Enhancement, 3-Pin TO-252

RS Stock No.: 188-8289Brand: STMicroelectronicsManufacturers Part No.: STD5N80K5
brand-logo
View all in MOSFETs

Technical documents

Specifications

Brand

STMicroelectronics

Channel Type

Type N

Product Type

MOSFET

Maximum Continuous Drain Current Id

4A

Maximum Drain Source Voltage Vds

800V

Package Type

TO-252

Mount Type

Surface

Pin Count

3

Maximum Drain Source Resistance Rds

1.73Ω

Channel Mode

Enhancement

Forward Voltage Vf

1.5V

Typical Gate Charge Qg @ Vgs

5nC

Maximum Power Dissipation Pd

60W

Maximum Gate Source Voltage Vgs

30 V

Minimum Operating Temperature

-55°C

Maximum Operating Temperature

150°C

Standards/Approvals

No

Width

6.2 mm

Length

6.6mm

Height

2.17mm

Automotive Standard

No
