Technical Documents
Specifications
Brand
Texas InstrumentsLogic Family
HC
Product Type
Buffer & Line Driver
Logic Function
Buffer & Line Driver
Number of Channels
8
IC Type
Buffer & Line Driver IC
Input Type
Single Ended
Output Type
3 State
Polarity
Inverting
Mount Type
Through Hole
Package Type
PDIP
Minimum Supply Voltage
2V
Pin Count
20
Maximum Supply Voltage
6V
Maximum High Level Output Current
-7.8mA
Maximum Low Level Output Current
7.8mA
Maximum Propagation Delay Time @ CL
9ns
Minimum Operating Temperature
-40°C
Maximum Operating Temperature
85°C
Standards/Approvals
No
Series

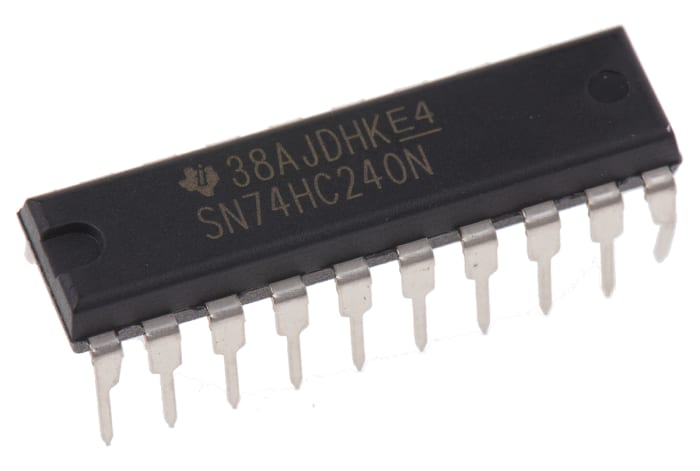

SN74HC240
Height
5.08mm
Length
26.92mm
Automotive Standard
No
Supply Current
80μA
Country of Origin
Malaysia
Product Details
Stock information temporarily unavailable.
₪ 88.50
₪ 4.425 Each (In a Tube of 20) (ex VAT)
₪ 103.54
₪ 5.177 Each (In a Tube of 20) (inc. VAT)
20
₪ 88.50
₪ 4.425 Each (In a Tube of 20) (ex VAT)
₪ 103.54
₪ 5.177 Each (In a Tube of 20) (inc. VAT)
Stock information temporarily unavailable.
20
| quantity | Unit price | Per Tube |
|---|---|---|
| 20 - 80 | ₪ 4.425 | ₪ 88.50 |
| 100 - 380 | ₪ 2.415 | ₪ 48.30 |
| 400 - 980 | ₪ 2.385 | ₪ 47.70 |
| 1000+ | ₪ 1.74 | ₪ 34.80 |
