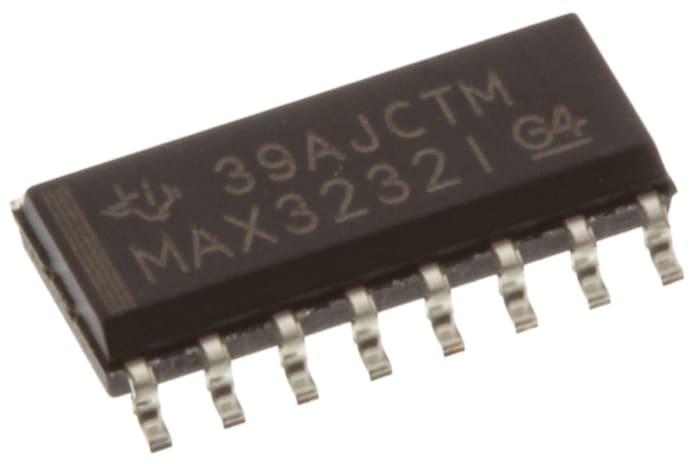

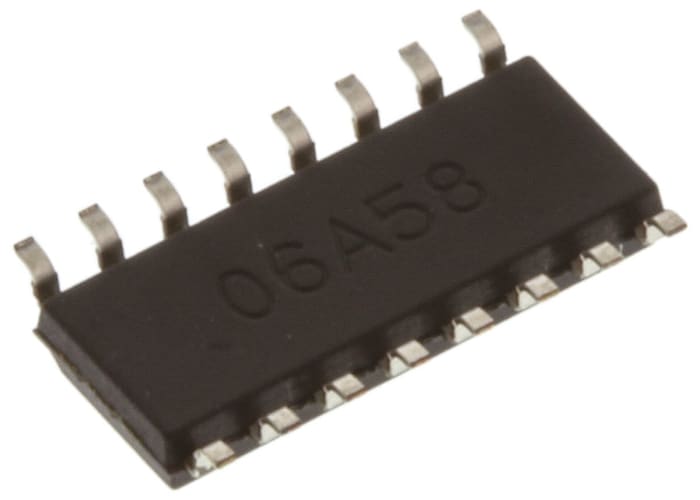

Texas Instruments MAX3232ID Line Transceiver, 16-Pin SOIC
Technical documents
Specifications
Brand
Texas InstrumentsProduct Type
Line Transceiver
Logic Function
Driver & Receiver
IC Type
Line Transceiver
Input Type
Single Ended
Mount Type
Surface
Package Type
SOIC
Minimum Supply Voltage
3V
Pin Count
16
Maximum High Level Output Current
-1mA
Maximum Supply Voltage
5.5V
Maximum Low Level Output Current
1.6mA
Maximum Propagation Delay Time @ CL
300μs
Minimum Operating Temperature
-40°C
Maximum Operating Temperature
85°C
Height
1.75mm
Length
10mm
Standards/Approvals
No
Series
MAX3232
Supply Current
1mA
Automotive Standard
No
Country of Origin
Mexico
Product details
RS-232 Line Transceivers, Dual, Texas Instruments
A range of RS-232 Line Transceivers which meet or exceed the requirements of the TIA/EIA-232-F and ITU v.28 standards. These devices generally include ESD protection of up to ±15 kV (Human-Body Model), ±8 kV (Contact Discharge) and most incorporate charge pump circuitry to allow operation from single 3 V to 5.5 V supplies. Dual transceivers each contain two line drivers and two line receivers and are available with operating speeds of up to 1 Mbps.
RS-232 Line Drivers and Receivers
Stock information temporarily unavailable.
₪ 107.70
₪ 21.54 Each (In a Pack of 5) (ex VAT)
₪ 126.01
₪ 25.202 Each (In a Pack of 5) (inc. VAT)
5
₪ 107.70
₪ 21.54 Each (In a Pack of 5) (ex VAT)
₪ 126.01
₪ 25.202 Each (In a Pack of 5) (inc. VAT)
Stock information temporarily unavailable.
5
| quantity | Unit price | Per Pack |
|---|---|---|
| 5 - 20 | ₪ 21.54 | ₪ 107.70 |
| 25 - 120 | ₪ 17.28 | ₪ 86.40 |
| 125 - 620 | ₪ 14.13 | ₪ 70.65 |
| 625 - 1245 | ₪ 13.395 | ₪ 66.98 |
| 1250+ | ₪ 12.63 | ₪ 63.15 |
