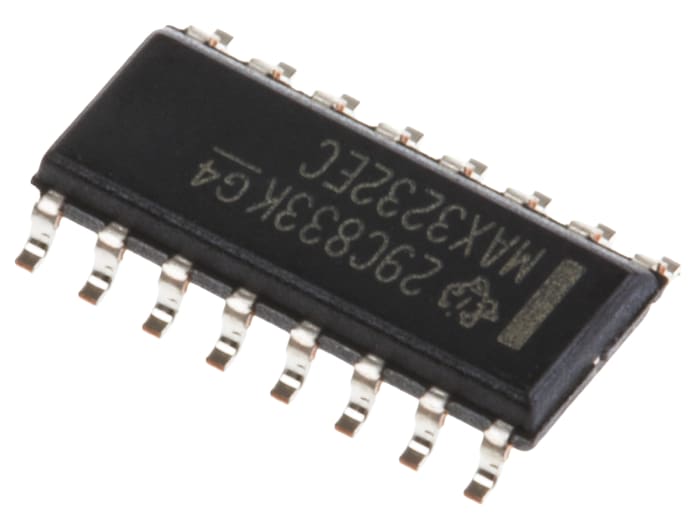

Texas Instruments MAX3232ECD Line Transceiver, 16-Pin SOIC
Technical documents
Specifications
Brand
Texas InstrumentsProduct Type
Line Transceiver
Logic Function
Driver & Receiver
IC Type
Dual Channel Transceiver
Input Type
Single Ended
Mount Type
Surface
Package Type
SOIC
Minimum Supply Voltage
3V
Pin Count
16
Maximum High Level Output Current
-1mA
Maximum Supply Voltage
5.5V
Maximum Low Level Output Current
1.6mA
Maximum Propagation Delay Time @ CL
300ns
Minimum Operating Temperature
0°C
Maximum Operating Temperature
70°C
Height
1.75mm
Length
10mm
Standards/Approvals
No
Series
MAX3232E
Supply Current
1mA
Automotive Standard
No
Product details
RS-232 Line Transceivers, Dual, Texas Instruments
A range of RS-232 Line Transceivers which meet or exceed the requirements of the TIA/EIA-232-F and ITU v.28 standards. These devices generally include ESD protection of up to ±15 kV (Human-Body Model), ±8 kV (Contact Discharge) and most incorporate charge pump circuitry to allow operation from single 3 V to 5.5 V supplies. Dual transceivers each contain two line drivers and two line receivers and are available with operating speeds of up to 1 Mbps.
