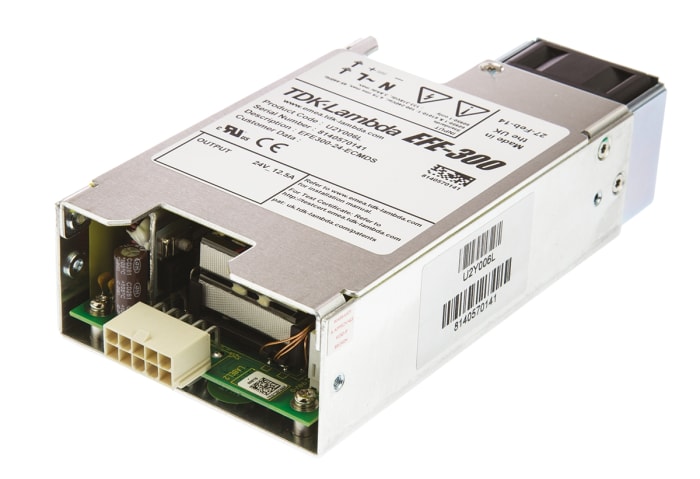

TDK-Lambda Switching Power Supply, EFE300-24-ECMDS 24V dc, 12.5A, 300 W, Input 90V ac to 350 V dc, 264V ac
Technical documents
Specifications
Brand
TDK-LambdaProduct Type
Switching Power Supply
Maximum Output Voltage
24V dc
Number of Outputs
1
Mount Type
PCB
Power
300W
Minimum Operating Temperature
0°C
SMPS Output Current
12.5A
Maximum Operating Temperature
70°C
Depth
40.6mm
Length
158mm
Weight
550g
Standards/Approvals
CE & UKCA, EN 55011-B, EN 55032-B, FCC, IEC 60601-1-2 Ed4, IEC 61000-4-2, IEC/UL/CSA/EN 62368-1, IEC/UL/ES/CSA/EN 60601-1
Width
84.4mm
Efficiency
90%
Series
EFE300
Maximum Input Voltage
350, 264V dc
Output Current
12.5A
Hazardous Area Certification
No
Minimum Input Voltage
90V ac
Country of Origin
United Kingdom
Product details
300 & 400W, Universal Input, Single Output, EFE Series
Miniature size, high power density
Low profile fits 1U applications
8-bit microcontroller for full digital control
Power factor correction to EN61000-3-2
Up to 90% efficiency
No minimum load
Short circuit, over voltage and over temperature protection
Approvals
UL recognised component
Standards
EN 60950-1, UL 60950-1, CSA 22.2 No. 60950, IEC 60950-1, IEC 60601-1
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stock information temporarily unavailable.
₪ 2,708.48
₪ 2,708.48 Each (ex VAT)
₪ 3,168.92
₪ 3,168.92 Each (inc. VAT)
1
₪ 2,708.48
₪ 2,708.48 Each (ex VAT)
₪ 3,168.92
₪ 3,168.92 Each (inc. VAT)
Stock information temporarily unavailable.
1
| quantity | Unit price |
|---|---|
| 1 - 4 | ₪ 2,708.48 |
| 5 - 9 | ₪ 2,613.18 |
| 10 - 24 | ₪ 2,513.76 |
| 25 - 49 | ₪ 2,410.05 |
| 50+ | ₪ 2,302.47 |
