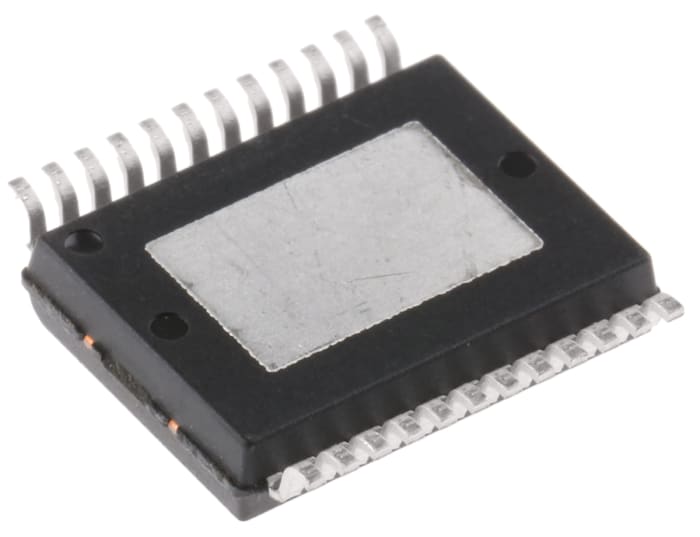

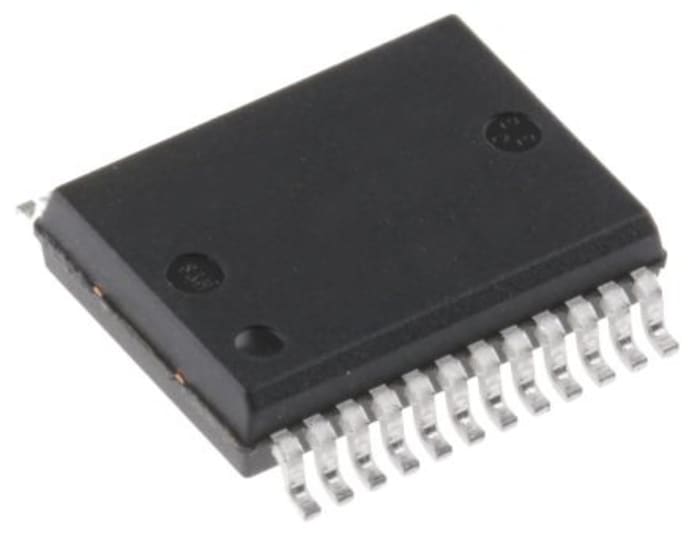

STMicroelectronics VND5050AK-E MOSFET Gate Driver 2, 18 A 24-Pin 36 V, PowerSSO
Technical documents
Specifications
Brand
STMicroelectronicsProduct Type
MOSFET
Output Current
18A
Pin Count
24
Fall Time
35μs
Package Type
PowerSSO
Number of Outputs
2
Driver Type
MOSFET
Rise Time
25μs
Minimum Supply Voltage
36V
Number of Drivers
2
Maximum Supply Voltage
36V
Minimum Operating Temperature
-40°C
Maximum Operating Temperature
150°C
Width
7.6 mm
Length
10.5mm
Height
2.4mm
Standards/Approvals
No
Mount Type
Surface
Automotive Standard
AEC-Q100
Product details
Power ICs, High-Side Power Switches, STMicroelectronics
High-side switches can safely drive high currents in resistive, inductive and capacitive grounded loads. Designed to work in the harsh automotive environment they requires both robust, low on-resistance power switch and accurate analogue circuitry for diagnostic, protection and control functions.
Intelligent Power Switches, STMicroelectronics
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stock information temporarily unavailable.
₪ 129.52
₪ 25.905 Each (In a Pack of 5) (ex VAT)
₪ 151.54
₪ 30.309 Each (In a Pack of 5) (inc. VAT)
5
₪ 129.52
₪ 25.905 Each (In a Pack of 5) (ex VAT)
₪ 151.54
₪ 30.309 Each (In a Pack of 5) (inc. VAT)
Stock information temporarily unavailable.
5
| quantity | Unit price | Per Pack |
|---|---|---|
| 5 - 45 | ₪ 25.905 | ₪ 129.52 |
| 50 - 95 | ₪ 20.985 | ₪ 104.92 |
| 100+ | ₪ 18.495 | ₪ 92.48 |
