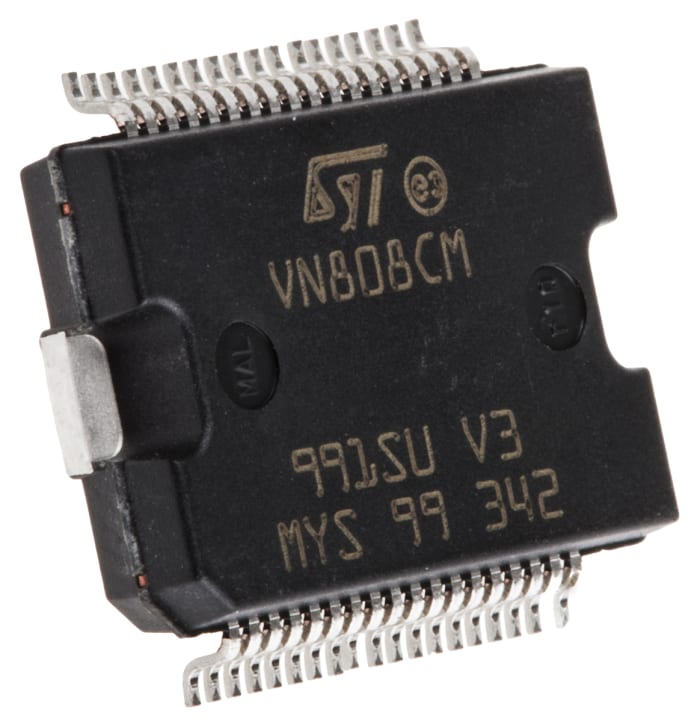

STMicroelectronics High Side 8, High Side Power Switch IC 36-Pin, PowerSO

RS Stock No.: 714-1177PBrand: STMicroelectronicsManufacturers Part No.: VN808CM-E
brand-logo
View all in Power Switch ICs

Technical documents

Specifications

Brand

STMicroelectronics

Power Switch Topology

High Side

Power Switch Type

High Side

Product Type

Power Switch IC

Switch On Resistance RdsOn

160mΩ

Number of Outputs

8

Power Rating

96W

Number of Inputs

8

Mount Type

Surface

Minimum Supply Voltage

10.5V

Package Type

PowerSO

Maximum Supply Voltage

45V

Pin Count

36

Operating Current

700mA

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

125°C

Width

11.1 mm

Height

3.3mm

Length

16mm

Standards/Approvals

IEC 61131, 61000-4-4 IEC test up to 4 kV

Automotive Standard

No

Product details

Intelligent High Side Power Switches, STMicroelectronics

Intelligent Power Switches (IPS) integrate the logic interface, drivers, diagnostic and protection features of a control section and the power stage for high-side configurations.
