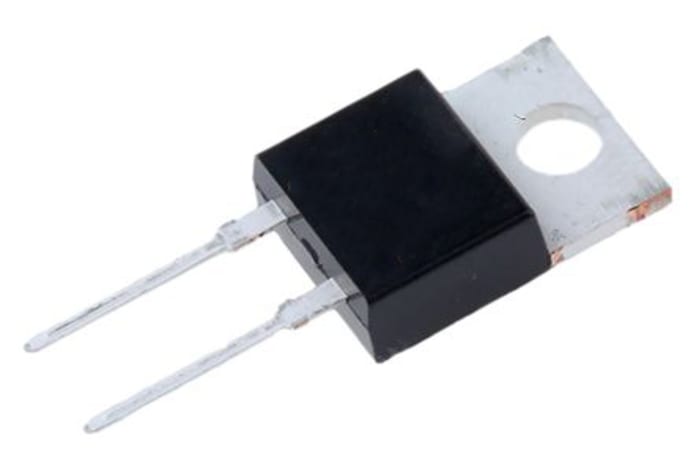

STMicroelectronics 200 V 8 A Diode Switching 2-Pin TO-220
Technical documents
Specifications
Brand
STMicroelectronicsProduct Type
Diode
Mount Type
Through Hole
Package Type
TO-220
Maximum Continuous Forward Current If
8A
Peak Reverse Repetitive Voltage Vrrm
200V
Series
STTH802
Diode Configuration
Single
Rectifier Type
Switching
Pin Count
2
Peak Reverse Current Ir
6μA
Minimum Operating Temperature
-65°C
Peak Non-Repetitive Forward Surge Current Ifsm
100A
Maximum Forward Voltage Vf
1.05V
Peak Reverse Recovery Time trr
30ns
Maximum Operating Temperature
175°C
Width
4.6 mm
Height
9.3mm
Length
10.4mm
Diameter
3.75 mm
Standards/Approvals
RoHS
Automotive Standard
No
Product details
Rectifier Diodes, 4A to 9A, STMicroelectronics
Diodes and Rectifiers, STMicroelectronics
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stock information temporarily unavailable.
₪ 42.15
₪ 8.43 Each (In a Pack of 5) (ex VAT)
₪ 49.32
₪ 9.863 Each (In a Pack of 5) (inc. VAT)
Standard
5
₪ 42.15
₪ 8.43 Each (In a Pack of 5) (ex VAT)
₪ 49.32
₪ 9.863 Each (In a Pack of 5) (inc. VAT)
Stock information temporarily unavailable.
Standard
5
| quantity | Unit price | Per Pack |
|---|---|---|
| 5 - 20 | ₪ 8.43 | ₪ 42.15 |
| 25 - 45 | ₪ 6.57 | ₪ 32.85 |
| 50 - 95 | ₪ 5.88 | ₪ 29.40 |
| 100 - 245 | ₪ 5.16 | ₪ 25.80 |
| 250+ | ₪ 5.085 | ₪ 25.42 |
