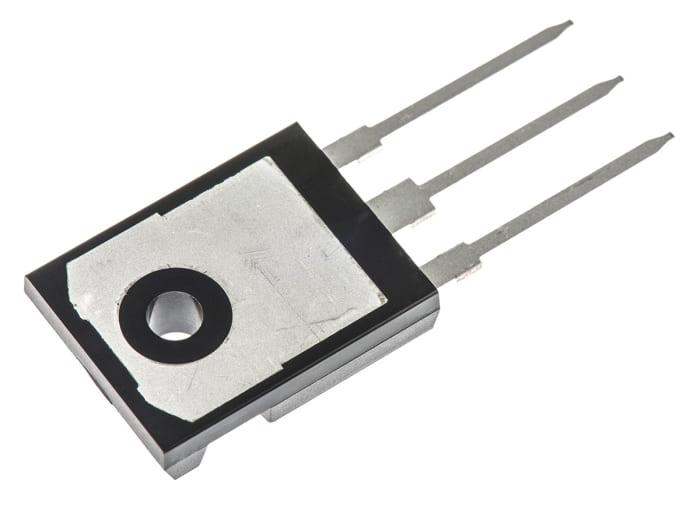

Technical Documents
Specifications
Brand
STMicroelectronicsDiode Configuration
Common Cathode
Product Type
Switching Diode
Maximum Forward Current If
60A
Sub Type
Silicon Junction
Mount Type
Through Hole
Package Type
TO-247
Pin Count
3
Peak Reverse Recovery Time trr
25ns
Maximum Peak Reverse Repetitive Voltage Vrrm
300V
Maximum Forward Voltage Vf
1.7V
Minimum Operating Temperature
-65°C
Peak Non-Repetitive Forward Surge Current Ifsm
280A
Maximum Operating Temperature
175°C
Length
15.75mm
Height
20.15mm
Standards/Approvals
No
Automotive Standard
No
Product Details
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
Stock information temporarily unavailable.
₪ 784.80
₪ 32.70 Each (Supplied in a Tube) (ex VAT)
₪ 918.22
₪ 38.259 Each (Supplied in a Tube) (inc. VAT)
Production pack (Tube)
24
₪ 784.80
₪ 32.70 Each (Supplied in a Tube) (ex VAT)
₪ 918.22
₪ 38.259 Each (Supplied in a Tube) (inc. VAT)
Stock information temporarily unavailable.
Production pack (Tube)
24
| quantity | Unit price | Per Tube |
|---|---|---|
| 24 - 98 | ₪ 32.70 | ₪ 65.40 |
| 100 - 248 | ₪ 28.665 | ₪ 57.33 |
| 250 - 498 | ₪ 27.645 | ₪ 55.29 |
| 500+ | ₪ 26.88 | ₪ 53.76 |
