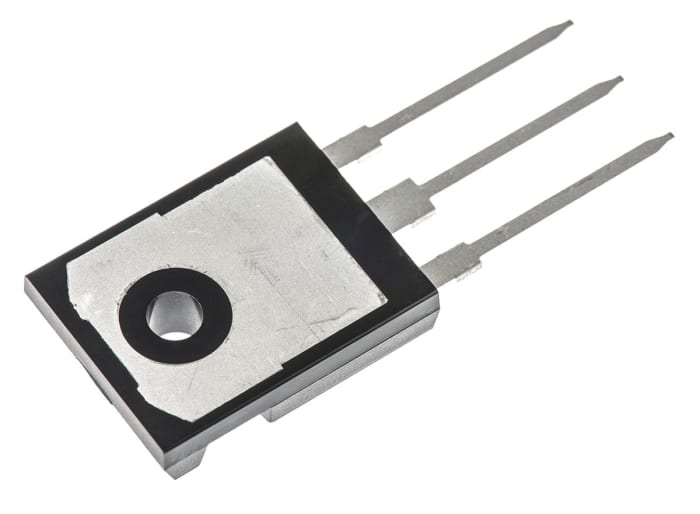

STMicroelectronics Switching Diode, Common Cathode, 30 A, 3-Pin 200 V TO-247 STTH30W02CW

RS Stock No.: 829-0478Brand: STMicroelectronicsManufacturers Part No.: STTH30W02CW
brand-logo
View all in Switching Diodes

Technical documents

Specifications

Brand

STMicroelectronics

Diode Configuration

Common Cathode

Product Type

Switching Diode

Maximum Forward Current If

30A

Sub Type

Silicon Junction

Mount Type

Through Hole

Package Type

TO-247

Pin Count

3

Peak Reverse Recovery Time trr

20ns

Maximum Peak Reverse Repetitive Voltage Vrrm

200V

Maximum Forward Voltage Vf

1.4V

Minimum Operating Temperature

-65°C

Peak Non-Repetitive Forward Surge Current Ifsm

140A

Maximum Operating Temperature

175°C

Width

5.15 mm

Length

15.75mm

Height

20.15mm

Standards/Approvals

No

Automotive Standard

No

Product details

Rectifier Diodes, 10A to 240A, STMicroelectronics

Diodes and Rectifiers, STMicroelectronics
