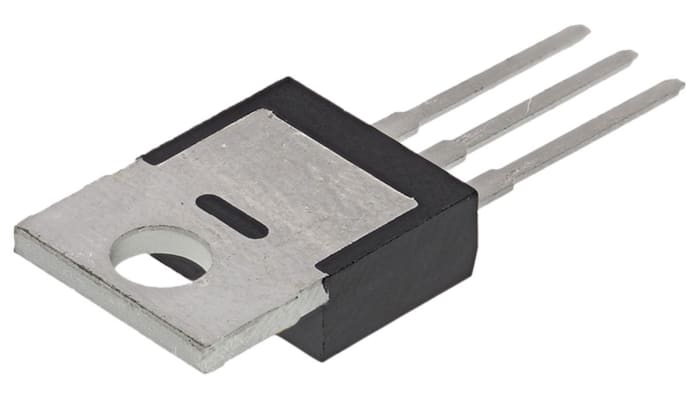

STMicroelectronics 300 V 20 A Diode Switching 3-Pin TO-220
Technical documents
Specifications
Brand
STMicroelectronicsProduct Type
Diode
Mount Type
Through Hole
Package Type
TO-220
Maximum Continuous Forward Current If
20A
Peak Reverse Repetitive Voltage Vrrm
300V
Series
STTH2003
Diode Configuration
Common Cathode
Rectifier Type
Switching
Pin Count
3
Peak Reverse Current Ir
20μA
Minimum Operating Temperature
-65°C
Peak Non-Repetitive Forward Surge Current Ifsm
110A
Maximum Forward Voltage Vf
1.25V
Peak Reverse Recovery Time trr
35ns
Maximum Operating Temperature
175°C
Width
4.6 mm
Height
9.15mm
Length
10.4mm
Diameter
3 mm
Standards/Approvals
RoHS
Automotive Standard
No
Product details
Rectifier Diodes, 10A to 240A, STMicroelectronics
Diodes and Rectifiers, STMicroelectronics
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stock information temporarily unavailable.
₪ 23.24
₪ 23.24 Each (ex VAT)
₪ 27.19
₪ 27.19 Each (inc. VAT)
1
₪ 23.24
₪ 23.24 Each (ex VAT)
₪ 27.19
₪ 27.19 Each (inc. VAT)
Stock information temporarily unavailable.
1
| quantity | Unit price |
|---|---|
| 1 - 9 | ₪ 23.24 |
| 10 - 49 | ₪ 16.65 |
| 50 - 149 | ₪ 16.30 |
| 150 - 499 | ₪ 16.06 |
| 500+ | ₪ 15.93 |
