Technical Documents
Specifications
Brand

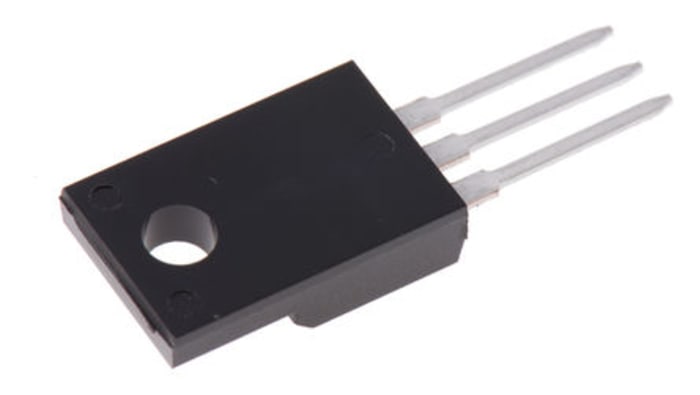

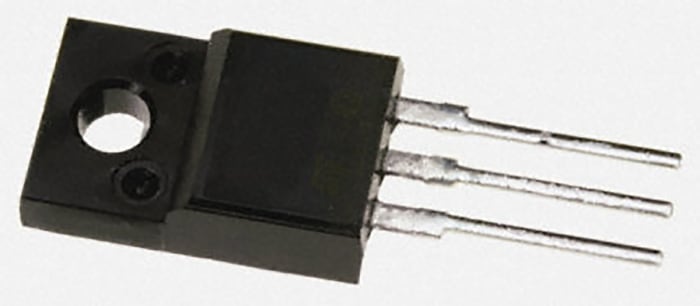

STMicroelectronicsProduct Type
Diode
Mount Type
Through Hole
Package Type
TO-220
Maximum Continuous Forward Current If
20A
Peak Reverse Repetitive Voltage Vrrm
200V
Diode Configuration
Common Cathode
Series
STTH2002C
Rectifier Type
Switching
Pin Count
3
Peak Reverse Current Ir
10μA
Maximum Forward Voltage Vf
1.25V
Minimum Operating Temperature
-65°C
Peak Non-Repetitive Forward Surge Current Ifsm
90A
Peak Reverse Recovery Time trr
27ns
Maximum Operating Temperature
175°C
Length
10.4mm
Height
9.3mm
Standards/Approvals
RoHS
Automotive Standard
No
Product Details
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
Stock information temporarily unavailable.
₪ 23.20
₪ 23.20 Each (ex VAT)
₪ 27.14
₪ 27.14 Each (inc. VAT)
1
₪ 23.20
₪ 23.20 Each (ex VAT)
₪ 27.14
₪ 27.14 Each (inc. VAT)
Stock information temporarily unavailable.
1
| quantity | Unit price |
|---|---|
| 1 - 24 | ₪ 23.20 |
| 25 - 99 | ₪ 11.67 |
| 100 - 249 | ₪ 8.98 |
| 250 - 499 | ₪ 8.76 |
| 500+ | ₪ 8.26 |
