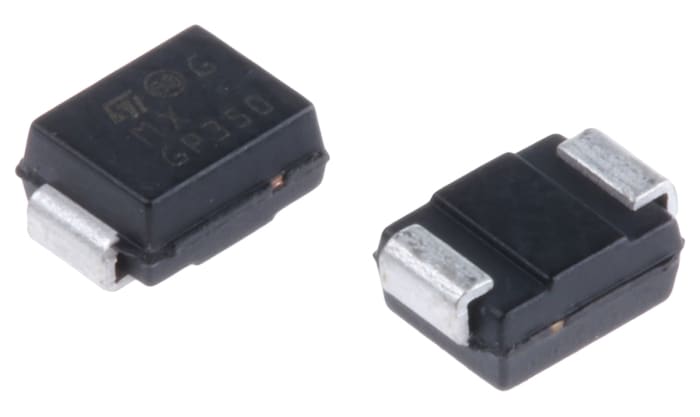

STMicroelectronics SM6T39CA 1-Element Bi-Directional TVS Diode, 600 W, 2-Pin DO-214

RS Stock No.: 486-5031Brand: STMicroelectronicsManufacturers Part No.: SM6T39CADistrelec Article No.: 304-42-961
brand-logo
View all in TVS Diodes

Technical documents

Specifications

Brand

STMicroelectronics

Diode Configuration

Single

Product Type

TVS Diode

Direction Type

Bi-Directional

Minimum Breakdown Voltage Vbr

37.1V

Mount Type

Surface

Package Type

DO-214

Maximum Reverse Stand-off Voltage Vwm

33.3V

Pin Count

2

Peak Pulse Power Dissipation Pppm

600W

Test Current It

1mA

Maximum Peak Pulse Current Ippm

57A

Clamping Voltage VC

69.7V

Minimum Operating Temperature

-55°C

Maximum Operating Temperature

150°C

Number of Elements per Chip

1

Length

4.6mm

Standards/Approvals

No

Series

SM6T

Width

3.95 mm

Height

2.45mm

Automotive Standard

No

Maximum Reverse Leakage Current

200nA

Product details

Transil™ TVS SMT Bidirectional 600W, SM6T Series, STMicroelectronics

Transient Voltage Suppressors, STMicroelectronics
