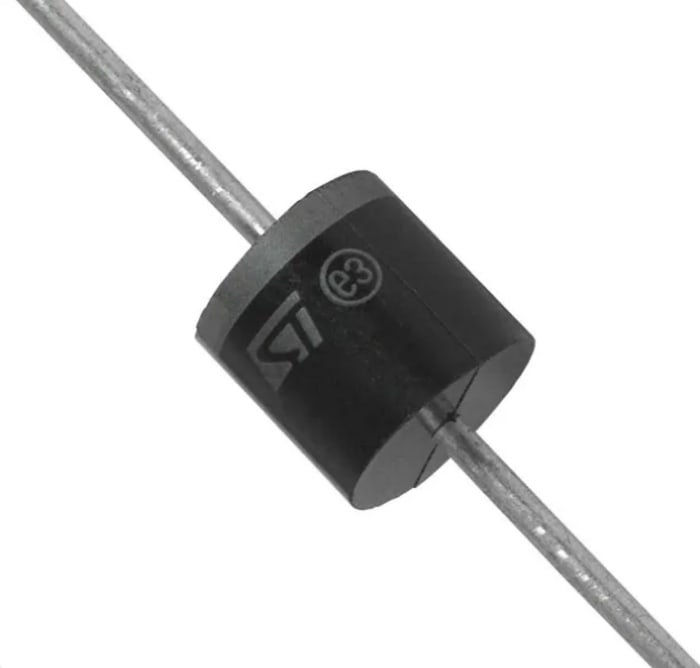

STMicroelectronics 1, 24 V Zener Diode, Single 5 W Through Hole 2-Pin R-6

RS Stock No.: 190-6756Brand: STMicroelectronicsManufacturers Part No.: LDP24A
brand-logo
View all in Zener Diodes

Technical documents

Specifications

Brand

STMicroelectronics

Nominal Zener Voltage Vz

24V

Product Type

Zener Diode

Diode Configuration

Single

Mount Type

Through Hole

Number of Elements per Chip

1

Maximum Power Dissipation Pd

5W

Package Type

R-6

Pin Count

2

Minimum Operating Temperature

65°C

Maximum Reverse Leakage Current

300μA

Maximum Operating Temperature

175°C

Standards/Approvals

No

Series

LDP24

Height

9.1mm

Diameter

9.1 mm

Width

9.1 mm

Length

25.4mm

Automotive Standard

No
