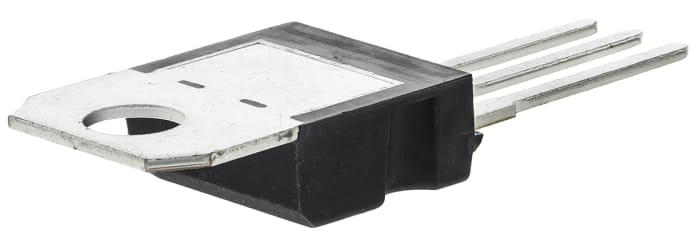

STMicroelectronics L7912CV, 5-Channel Linear, Voltage Regulator, 1.5 A, -12 V, TO-220 3-Pin
Technical documents
Specifications
Brand
STMicroelectronicsProduct Type
Voltage Regulator
Regulator Type
Linear
Number of Outputs
5
Output Voltage
-12 V
Line Regulation
240 mV
Load Regulation
240 mV
Mount Type
Through Hole
Polarity
Negative
Quiescent Current
3mA
Package Type
TO-220
Output Current
1.5A
Pin Count
3
Output Type
Fixed
Switching Regulator
No
Length
10.4mm
Standards/Approvals
RoHS
Series
L79xx
Width
4.6 mm
Height
9.15mm
Maximum Operating Temperature
150°C
Maximum Input Voltage
-35V
Minimum Operating Temperature
0°C
Automotive Standard
No
Product details
Negative Linear Voltage Regulators, STMicroelectronics
Standard Negative Voltage Regulators offer very stable and reliable operation, featuring short circuit and thermal overload protection. Suitable for a broad range of voltage regulation applications.
Linear Voltage Regulators, STMicroelectronics
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stock information temporarily unavailable.
₪ 191.25
₪ 3.825 Each (In a Tube of 50) (ex VAT)
₪ 223.76
₪ 4.475 Each (In a Tube of 50) (inc. VAT)
50
₪ 191.25
₪ 3.825 Each (In a Tube of 50) (ex VAT)
₪ 223.76
₪ 4.475 Each (In a Tube of 50) (inc. VAT)
Stock information temporarily unavailable.
50
| quantity | Unit price | Per Tube |
|---|---|---|
| 50 - 200 | ₪ 3.825 | ₪ 191.25 |
| 250 - 950 | ₪ 3.30 | ₪ 165.00 |
| 1000 - 2450 | ₪ 2.97 | ₪ 148.50 |
| 2500+ | ₪ 2.625 | ₪ 131.25 |
