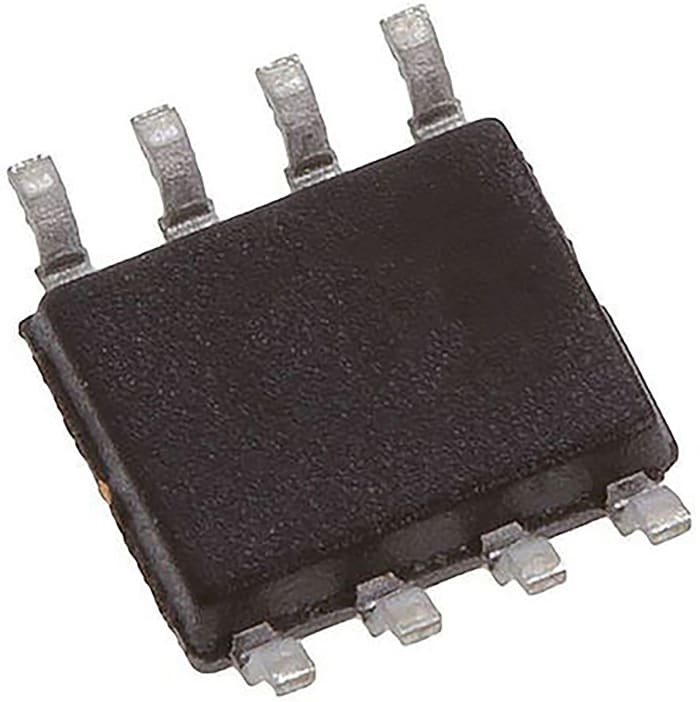

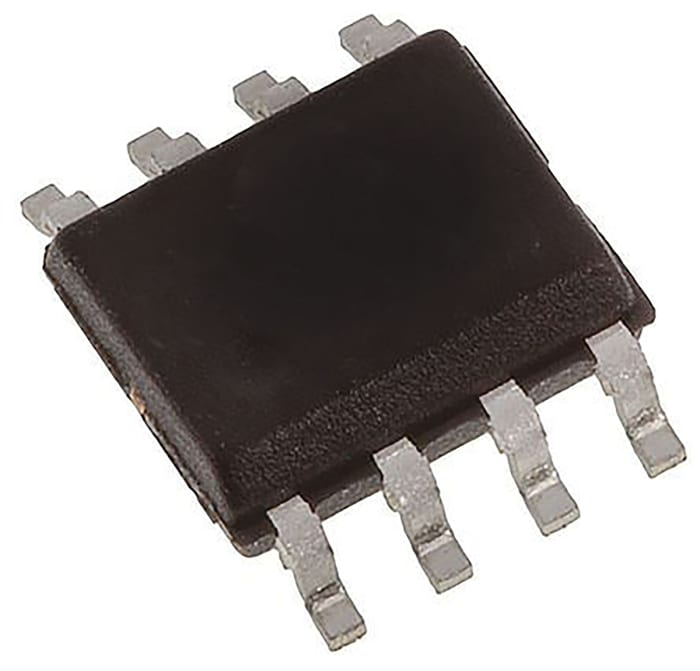

STMicroelectronics High Side, Power Switch Power Switch IC 8-Pin, SOIC

RS Stock No.: 686-8489PBrand: STMicroelectronicsManufacturers Part No.: L6375S
brand-logo
View all in Power Switch ICs

Technical documents

Specifications

Brand

STMicroelectronics

Power Switch Topology

High Side

Power Switch Type

Power Switch

Product Type

Power Switch IC

Number of Outputs

1

Mount Type

Surface

Minimum Supply Voltage

8V

Package Type

SOIC

Maximum Supply Voltage

35V

Pin Count

8

Operating Current

0.5A

Minimum Operating Temperature

-25°C

Maximum Operating Temperature

85°C

Width

4 mm

Height

1.25mm

Length

5mm

Standards/Approvals

IEC 61000-4-4

Series

L6375S

Automotive Standard

No

Product details

L6375, 0.5A High-Side Driver Intelligent Power Switch, STMicroelectronics

The L6375 is a monolithic Intelligent power switch for driving inductive or resistive loads. It features controlled output voltage slew rate and short circuit protection.

8 V to 35 V supply voltage range
Internal current limiting
Thermal shutdown
Open ground protection

Intelligent Power Switches, STMicroelectronics
