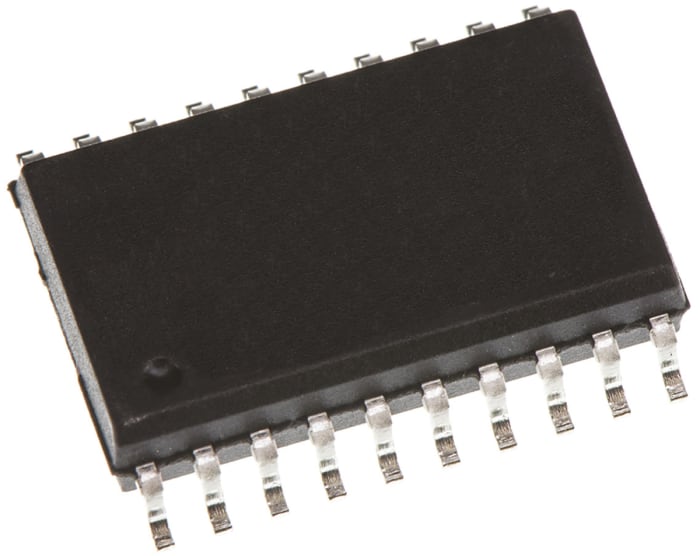

STMicroelectronics Low Side 2, Driver Power Switch IC 20-Pin, SOIC

RS Stock No.: 877-2665PBrand: STMicroelectronicsManufacturers Part No.: E-L9826TR
brand-logo
View all in Power Switch ICs

Technical documents

Specifications

Brand

STMicroelectronics

Power Switch Topology

Low Side

Power Switch Type

Driver

Product Type

Power Switch IC

Switch On Resistance RdsOn

3Ω

Number of Inputs

2

Interface Type

Parallel, SPI

Mount Type

Surface

Minimum Supply Voltage

4.5V

Package Type

SOIC

Pin Count

20

Maximum Supply Voltage

7V

Operating Current

1A

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

150°C

Height

2.35mm

Length

13mm

Standards/Approvals

DIN40839, ISO7637, MIL 883C (ESD)

Series

L9826

Automotive Standard

No

Country of Origin

Malaysia

Product details

Power ICs, Low-Side Power Switches, STMicroelectronics

Low-side switches can safely drive high currents in resistive, inductive and capacitive grounded loads. Designed to work in the harsh automotive environment they requires both robust, low on-resistance power switch and accurate analogue circuitry for diagnostic, protection and control functions.
