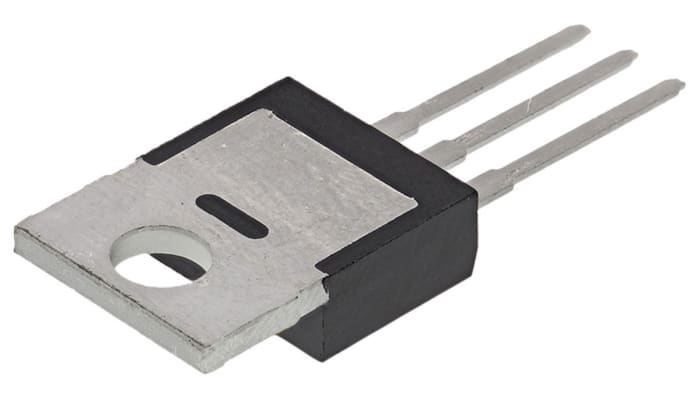

STMicroelectronics BUL216 Transistor, 4 A NPN, 800 V, 3-Pin TO-220
Technical documents
Specifications
Brand
STMicroelectronicsProduct Type
Transistor
Maximum DC Collector Current Idc
4A
Maximum Collector Emitter Voltage Vceo
800V
Package Type
TO-220
Mount Type
Through Hole
Transistor Configuration
Single
Maximum Collector Base Voltage VCBO
1600V
Maximum Emitter Base Voltage VEBO
9V
Maximum Power Dissipation Pd
9W
Transistor Polarity
NPN
Minimum DC Current Gain hFE
10
Pin Count
3
Maximum Operating Temperature
150°C
Width
4.6 mm
Length
10.4mm
Standards/Approvals
No
Height
29.75mm
Automotive Standard
No
Product details
High Voltage Transistors, STMicroelectronics
Bipolar Transistors, STMicroelectronics
A broad range of NPN and PNP Bipolar Transistors from STMicroelectronics including General Purpose, Darlington, Power and High-Voltage devices in both SMT and Through-hole packages.
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stock information temporarily unavailable.
₪ 23.49
₪ 23.49 Each (ex VAT)
₪ 27.48
₪ 27.48 Each (inc. VAT)
1
₪ 23.49
₪ 23.49 Each (ex VAT)
₪ 27.48
₪ 27.48 Each (inc. VAT)
Stock information temporarily unavailable.
1
| quantity | Unit price |
|---|---|
| 1 - 9 | ₪ 23.49 |
| 10 - 49 | ₪ 13.62 |
| 50 - 149 | ₪ 12.39 |
| 150 - 499 | ₪ 11.25 |
| 500+ | ₪ 9.93 |
