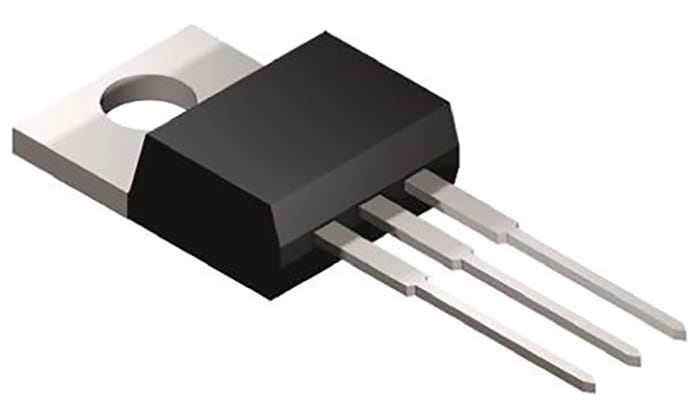

STMicroelectronics Through Hole, 3-Pin, TRIAC 600 V, Gate Trigger 1.5 V

RS Stock No.: 714-2619Brand: STMicroelectronicsManufacturers Part No.: BTB06-600TRG
brand-logo
View all in TRIACs

Technical documents

Specifications

Brand

STMicroelectronics

Rated Average On-State Current Irms

6A

Product Type

TRIAC

Mount Type

Through Hole

Package Type

TO-220

Maximum Gate Trigger Current Igt

5mA

Repetitive Peak Reverse Voltage VDRM

600V

Surge Current Rating

63A

Pin Count

3

Configuration

Single

Maximum Gate Trigger Voltage Vgt

1.5V

Maximum Holding Current Ih

15mA

Minimum Operating Temperature

-40°C

Peak Gate Power Dissipation

1W

Maximum Operating Temperature

110°C

Width

4.82 mm

Height

9.02mm

Length

10.5mm

Standards/Approvals

No

Repetitive Peak Off-State Current

0.01mA

Peak On-State Voltage

1.65V

Automotive Standard

No

Product details

TRIAC, up to 6A, STMicroelectronics

TRIACs, STMicroelectronics

Ideate. Create. Collaborate

JOIN FOR FREE

No hidden fees!

design-spark
design-spark
  • Download and use our DesignSpark software for your PCB and 3D Mechanical designs
  • View and contribute website content and forums
  • Download 3D Models, Schematics and Footprints from more than a million products
Click here to find out more

Stock information temporarily unavailable.

₪ 11.92

₪ 2.385 Each (In a Pack of 5) (ex VAT)

₪ 13.95

₪ 2.79 Each (In a Pack of 5) (inc. VAT)

STMicroelectronics Through Hole, 3-Pin, TRIAC 600 V, Gate Trigger 1.5 V
Select packaging type

Standard

Select packaging type

Standard - each

Available in multiples of 5.

Production -

Available in multiples of 5.

Recommended for ordering in large quantities. Items are packaged ready for insertion into machinery, allowing you to improve production efficiency.

5

Available in multiples of 5
5₪ 11.92
10₪ 23.85
15₪ 35.78
20₪ 47.70
25₪ 59.62
30₪ 71.55
35₪ 83.48
40₪ 95.40
45₪ 107.32
50₪ 119.25
55₪ 131.18
60₪ 143.10
65₪ 155.02
70₪ 166.95
75₪ 178.88

₪ 11.92

₪ 2.385 Each (In a Pack of 5) (ex VAT)

₪ 13.95

₪ 2.79 Each (In a Pack of 5) (inc. VAT)

STMicroelectronics Through Hole, 3-Pin, TRIAC 600 V, Gate Trigger 1.5 V
