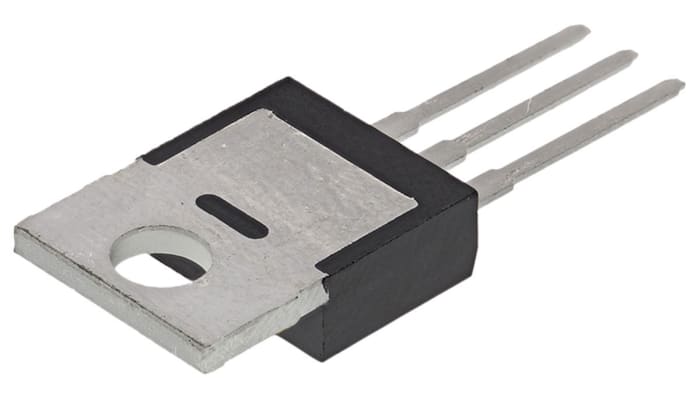

STMicroelectronics BDX33C 1 Darlington Transistor NPN, 10 A 100 V HFE:750, 3-Pin TO-220
Technical documents
Specifications
Brand
STMicroelectronicsProduct Type
Darlington Transistor
Maximum Continuous Collector Current Ic
10A
Maximum Collector Emitter Voltage Vceo
100V
Package Type
TO-220
Mount Type
Through Hole
Pin Count
3
Number of Elements per Chip
1
Minimum DC Current Gain hFE
750
Maximum Power Dissipation Pd
70W
Transistor Polarity
NPN
Maximum Emitter Base Voltage VEBO
5V
Minimum Operating Temperature
-65°C
Maximum Collector Emitter Saturation Voltage VceSAT
2.5V
Maximum Collector Base Voltage VCBO
100V
Maximum Operating Temperature
150°C
Width
4.6 mm
Height
9.15mm
Length
10.4mm
Standards/Approvals
No
Series
BDX33C
Maximum Collector Cut-off Current
0.2mA
Automotive Standard
No
Product details
NPN Darlington Transistors, STMicroelectronics
Bipolar Transistors, STMicroelectronics
A broad range of NPN and PNP Bipolar Transistors from STMicroelectronics including General Purpose, Darlington, Power and High-Voltage devices in both SMT and Through-hole packages.
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stock information temporarily unavailable.
₪ 378.75
₪ 7.575 Each (In a Tube of 50) (ex VAT)
₪ 443.14
₪ 8.863 Each (In a Tube of 50) (inc. VAT)
50
₪ 378.75
₪ 7.575 Each (In a Tube of 50) (ex VAT)
₪ 443.14
₪ 8.863 Each (In a Tube of 50) (inc. VAT)
Stock information temporarily unavailable.
50
| quantity | Unit price | Per Tube |
|---|---|---|
| 50 - 50 | ₪ 7.575 | ₪ 378.75 |
| 100 - 150 | ₪ 5.985 | ₪ 299.25 |
| 200 - 450 | ₪ 5.76 | ₪ 288.00 |
| 500 - 950 | ₪ 5.445 | ₪ 272.25 |
| 1000+ | ₪ 4.32 | ₪ 216.00 |
