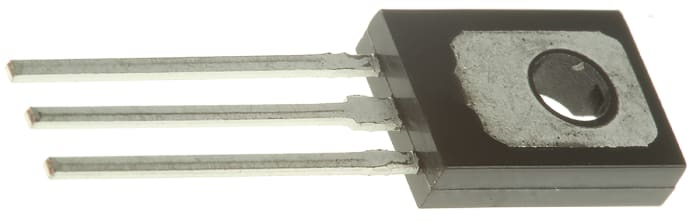

STMicroelectronics BD680 1 Darlington Transistor PNP, 4 A 80 V HFE:750, 3-Pin SOT-32
Technical documents
Specifications
Brand
STMicroelectronicsProduct Type
Darlington Transistor
Maximum Continuous Collector Current Ic
4A
Maximum Collector Emitter Voltage Vceo
80V
Package Type
SOT-32
Mount Type
Through Hole
Pin Count
3
Number of Elements per Chip
1
Minimum DC Current Gain hFE
750
Maximum Power Dissipation Pd
40W
Transistor Polarity
PNP
Maximum Emitter Base Voltage VEBO
5V
Minimum Operating Temperature
-65°C
Maximum Collector Emitter Saturation Voltage VceSAT
2.8V
Maximum Collector Base Voltage VCBO
80V
Maximum Operating Temperature
150°C
Width
2.7 mm
Height
10.8mm
Length
7.8mm
Standards/Approvals
JEDEC JESD97
Series
BD6xxx
Maximum Collector Cut-off Current
0.2mA
Automotive Standard
No
Product details
PNP Darlington Transistors, STMicroelectronics
Bipolar Transistors, STMicroelectronics
A broad range of NPN and PNP Bipolar Transistors from STMicroelectronics including General Purpose, Darlington, Power and High-Voltage devices in both SMT and Through-hole packages.
