Silicon Labs TS1102-200DB, Current Sensing Amplifier Demonstration Board for TS1102-200

Name: Silicon Labs TS1102-200DB, Current Sensing Amplifier Demonstration Board for TS1102-200
Brand: Silicon Labs
SKU: 8947064
Availability: LimitedAvailability

RS Stock No.: 894-7064Brand: Silicon LabsManufacturers Part No.: TS1102-200DB

View all in Analogue Development Tools

Technical Documents

Specifications

Brand

Silicon Labs

Analogue Function

Current Sensing Amplifier

Kit Classification

Demonstration Board

Featured Device

TS1102-200

Country of Origin

United States

Product Details

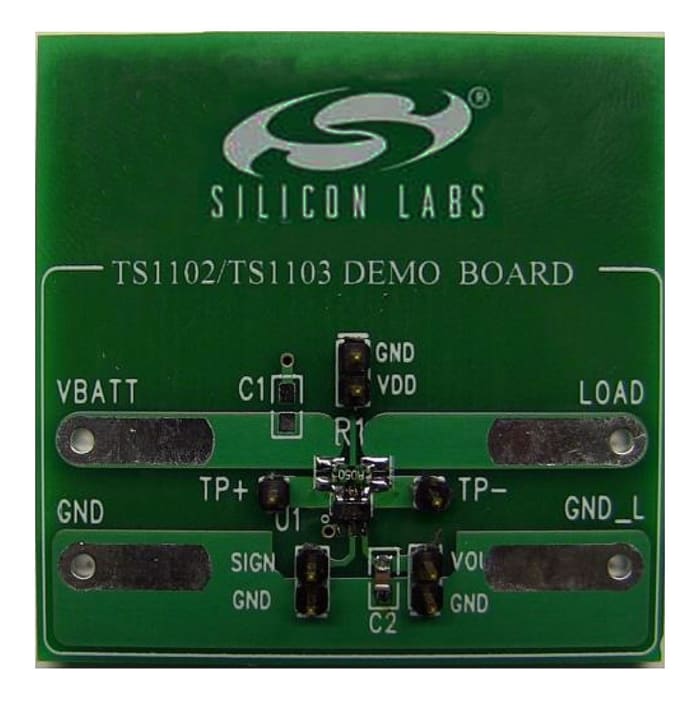

TS1102 Current-Sense Amplifier Demo Boards

Demonstration boards for the Silicon Labs TS1102 Current-Sense Amplifier. Available in a choice of four gain options; 25, 50, 100 and 200. These boards are fully assembled with your choice of gain and fully tested. The board is configured with an 50 mOhm resistor.

They have three dedicated test points; VBATT, VOUT and Load. These boards include a 47nF capacitor at the VOUT output pin.

The TS1102 are available in 5-pin SOT23 packages.
