Technical Documents
Specifications
Brand
SemtechDiode Configuration
Isolated
Product Type

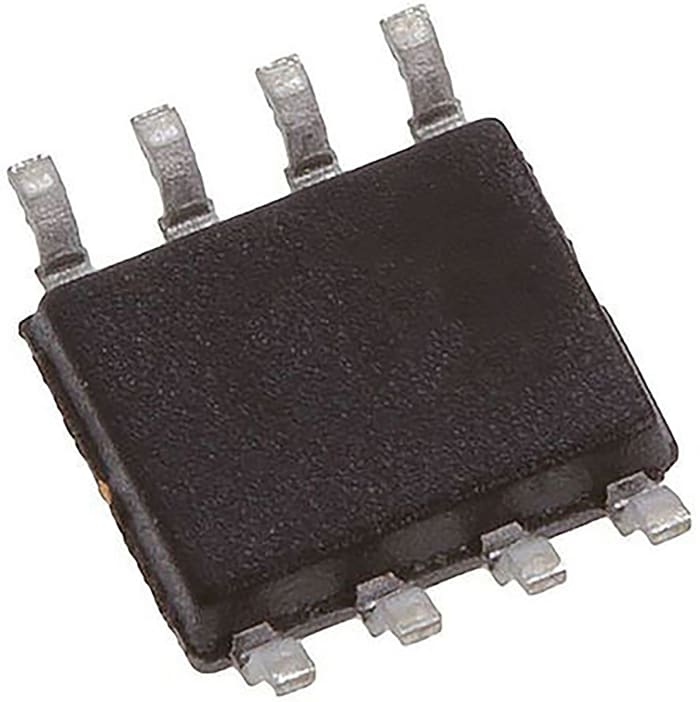

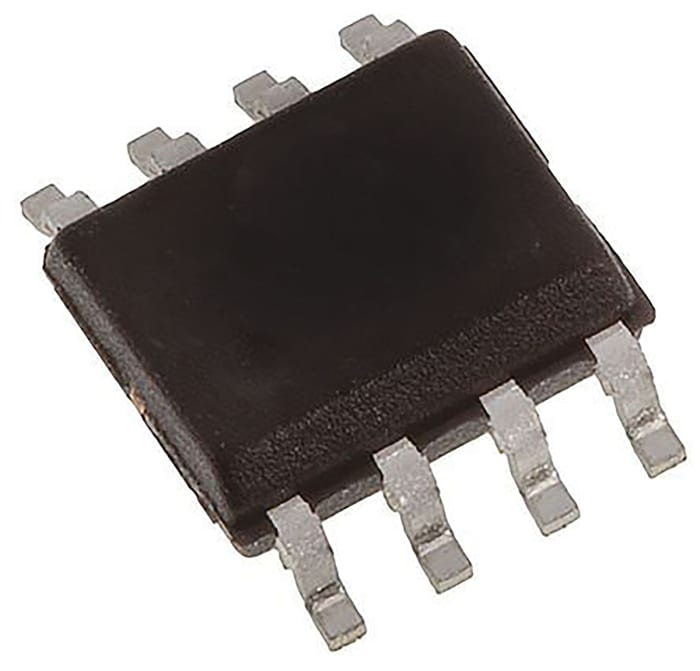

TVS Diode
Direction Type
Uni-Directional
Mount Type
Surface
Package Type
SOIC
Maximum Reverse Stand-off Voltage Vwm
2.8V
Pin Count
8
Peak Pulse Power Dissipation Pppm
400W
Clamping Voltage VC
15V
Minimum Operating Temperature
-55°C
Maximum Peak Pulse Current Ippm
24A
ESD Protection
Yes
Number of Elements per Chip
4
Maximum Operating Temperature
125°C
Height
1.5mm
Length
5mm
Standards/Approvals
No
Width
4mm
Series
SLVU2.8-4
Maximum Reverse Leakage Current
1μA
Automotive Standard
No
Product Details
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
Stock information temporarily unavailable.
₪ 274.20
₪ 27.42 Each (Supplied on a Reel) (ex VAT)
₪ 320.81
₪ 32.081 Each (Supplied on a Reel) (inc. VAT)
Production pack (Reel)
10
₪ 274.20
₪ 27.42 Each (Supplied on a Reel) (ex VAT)
₪ 320.81
₪ 32.081 Each (Supplied on a Reel) (inc. VAT)
Stock information temporarily unavailable.
Production pack (Reel)
10
| quantity | Unit price | Per Reel |
|---|---|---|
| 10 - 18 | ₪ 27.42 | ₪ 54.84 |
| 20 - 98 | ₪ 26.58 | ₪ 53.16 |
| 100 - 198 | ₪ 25.635 | ₪ 51.27 |
| 200+ | ₪ 24.72 | ₪ 49.44 |
