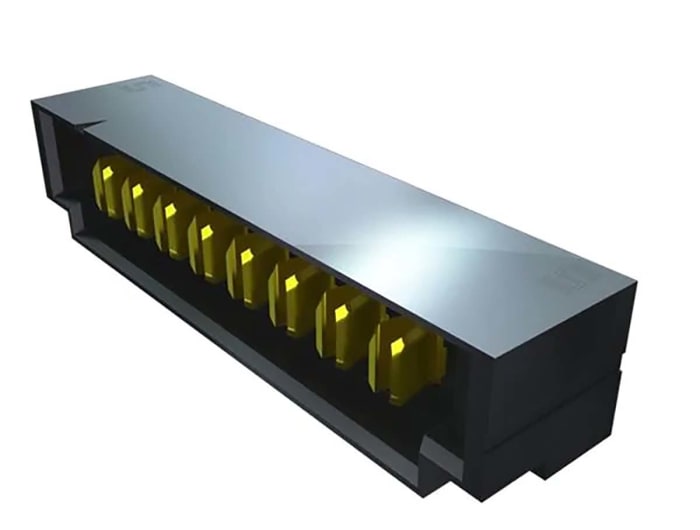

Samtec UPT Series Vertical Through Hole PCB Socket, 8-Contact, 8 Row Solder

RS Stock No.: 199-9983Brand: SamtecManufacturers Part No.: UPT-08-03.0-01-L-V
brand-logo
View all in PCB Sockets

Technical documents

Specifications

Brand

Samtec

Number of Contacts

8

Product Type

PCB Socket

Sub Type

Board-to-Board

Number of Rows

8

Current

20.1A

Termination Type

Solder

Housing Material

Liquid Crystal Polymer

Mount Type

Through Hole

Orientation

Vertical

Connector System

Board-to-Board

Stacking Height

10mm

Voltage

620V

Series

UPT

Row Pitch

3.81mm

Minimum Operating Temperature

-55°C

Contact Plating

Gold

Contact Gender

Female

Maximum Operating Temperature

105°C

Standards/Approvals

RoHS
