Technical Documents
Specifications
Brand
SamtecProduct Type
Pin Header
Series
TSM
Pitch
2.54mm
Current
5.4A
Number of Contacts
8
Housing Material
Liquid Crystal Polymer
Number of Rows
2
Orientation
Right Angle
Shrouded/Unshrouded
Unshrouded
Connector System
Board-to-Board
Mount Type
Surface
Contact Material
Phosphor Bronze
Contact Plating
Gold
Minimum Operating Temperature
-55°C
Row Pitch
2.54mm
Termination Type
Solder
Contact Gender
Male
Maximum Operating Temperature
125°C
Standards/Approvals
No
Voltage
475V
Product Details

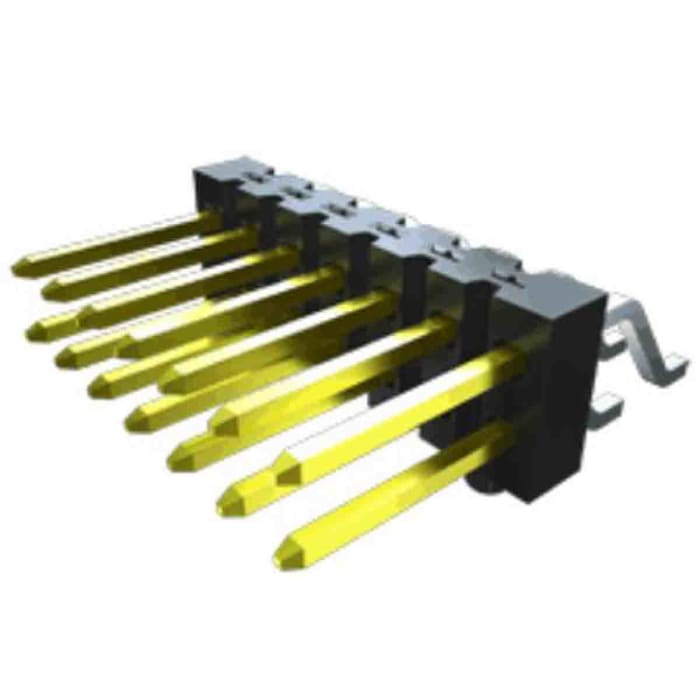

The Samtec TSM series SMT board-to-board square post header terminal strip with a 2.54mm pitch, which has 8 contact, a black liquid crystal polymer insulator and phosphor bronze terminal. It used 0.76 μm gold on post and matte tin on tail and has double r
