Technical Documents
Specifications
Brand
SamtecNumber of Contacts
140
Product Type
PCB Socket
Sub Type
High Speed Socket Strip
Number of Rows
2
Pitch
0.8mm
Current
2.2A
Housing Material
Liquid Crystal Polymer
Mount Type
Surface
Orientation
Right Angle
Connector System
Board-to-Board
Stacking Height
18mm
Voltage
318V
Series
ERF8
Minimum Operating Temperature
-55°C
Row Pitch
4.5mm
Maximum Operating Temperature
125°C
Contact Material
Beryllium Copper Alloy
Contact Plating
Gold
Standards/Approvals
No
Product Details

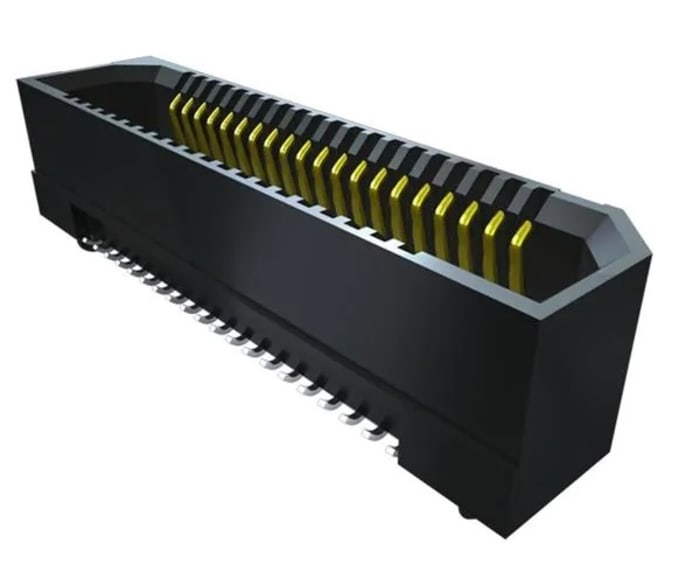

The Samtec ERF8 series 0.8mm rugged hig-speed socket has 70 positions per row and 1 lead style. It has 0.000254mm light selective gold on contact and matte tin on tail.
