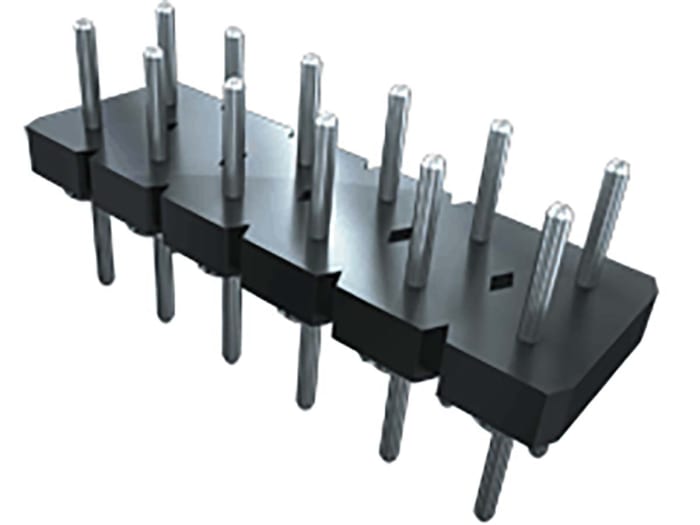

Samtec BDL Series Straight Through Hole PCB Socket, 20-Contact, 2 Row, 2.54 mm Pitch Solder
Technical documents
Specifications
Brand
SamtecNumber of Contacts
20
Product Type
PCB Socket
Number of Rows
2
Sub Type
Board-to-Board
Pitch
2.54mm
Termination Type
Solder
Housing Material
Glass Filled Polyester
Mount Type
Through Hole
Orientation
Straight
Connector System
Board-to-Board
Series
BDL
Minimum Operating Temperature
-55°C
Row Pitch
2.54mm
Maximum Operating Temperature
125°C
Contact Material
Brass and Phosphor Bronze
Contact Plating
Tin
Standards/Approvals
RoHS
