Technical Documents
Specifications
Brand

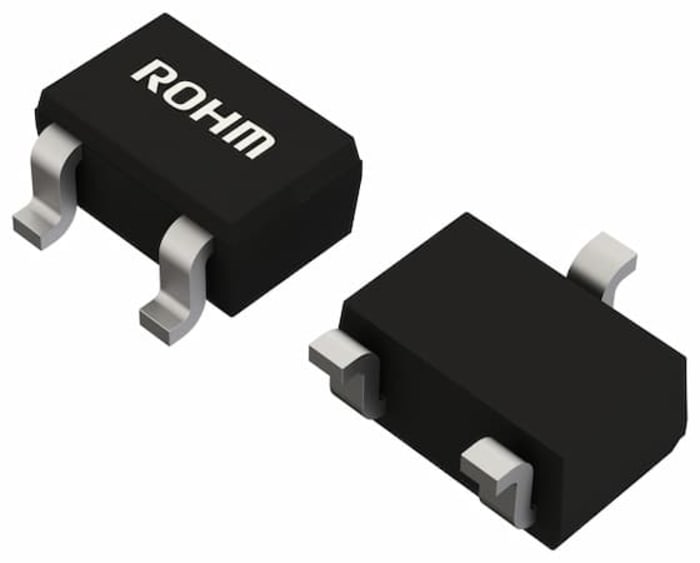

ROHMDiode Configuration
2x Common Cathode Pair
Product Type
Switching Diode
Maximum Forward Current If
300mA
Sub Type
High Speed Switching
Mount Type
Surface
Package Type
SOT-323
Pin Count
3
Maximum Forward Voltage Vf
1.2V
Minimum Operating Temperature
-55°C
Peak Non-Repetitive Forward Surge Current Ifsm
4000mA
Maximum Power Dissipation Pd
200mW
Peak Reverse Recovery Time trr
4ns
Maximum Peak Reverse Repetitive Voltage Vrrm
80V
Maximum Operating Temperature
150°C
Standards/Approvals
RoHS
Automotive Standard
AEC-Q101
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
Stock information temporarily unavailable.
P.O.A.
Each (Supplied on a Reel) (ex VAT)
Production pack (Reel)
25
P.O.A.
Each (Supplied on a Reel) (ex VAT)
Stock information temporarily unavailable.
Production pack (Reel)
25
