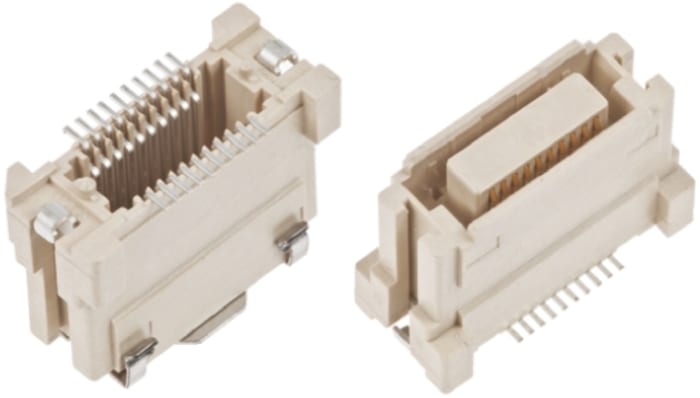

Molex SlimStack Series Straight Surface PCB Socket, 40-Contact, 2 Row, 0.635 mm Pitch Solder

RS Stock No.: 797-8988PBrand: MolexManufacturers Part No.: 52901-0474
brand-logo
View all in PCB Sockets

Technical documents

Specifications

Brand

Molex

Number of Contacts

40

Product Type

PCB Socket

Number of Rows

2

Sub Type

Board-to-Board

Pitch

0.635mm

Current

500mA

Termination Type

Solder

Housing Material

Thermoplastic

Mount Type

Surface

Orientation

Straight

Connector System

Signal, Board-to-Board

Voltage

100 V

Series

SlimStack

Minimum Operating Temperature

-55°C

Row Pitch

2.2mm

Contact Gender

Female

Maximum Operating Temperature

105°C

Contact Material

Copper

Contact Plating

Gold

Standards/Approvals

No

Product details

Slimstack Board to Board Headers, 52901 Series

These Molex 52901 Series SlimStack Board to Board Receptacles will have a stack height of 12 mm when mated with a 55091 Series Plug, see stock number 670-0813 typical.

0.635mm Board to Board Molex

The Molex SlimStack 0.635 mm pitch range of Micro SMT stacking connectors provide space-saving solutions for various applications. Gold plated contacts with a long swipe length give high reliability and friction locking for mating retention are all features of the Molex SlimStack range.
