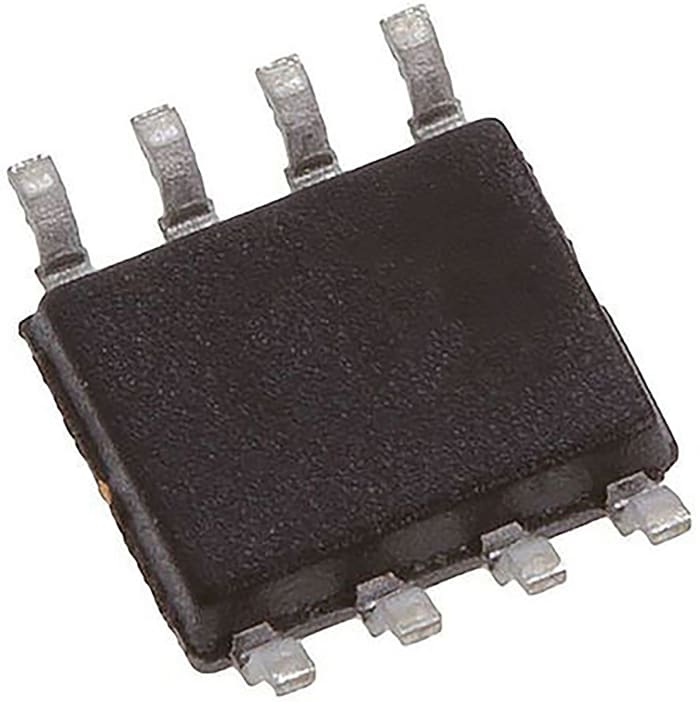

Broadcom DC Input Optocoupler, Surface, 8-Pin SOIC

Name: Broadcom DC Input Optocoupler, Surface, 8-Pin SOIC
Brand: Broadcom
SKU: 5473734P
Availability: LimitedAvailability

RS Stock No.: 547-3734PBrand: BroadcomManufacturers Part No.: HCPL-0701-000E

View all in Optocouplers

Technical Documents

Specifications

Brand

Broadcom

Product Type

Optocoupler

Mount Type

Surface

Maximum Forward Voltage

1.7V

Packaging

Tube

Number of Channels

Number of Pins

Package Type

SOIC

Input Current Type

Maximum Input Current

20mA

Isolation Voltage

3750V ac

Minimum Operating Temperature

-40°C

Logic Output

Yes

Maximum Current Transfer Ratio

5000%

Maximum Operating Temperature

85°C

Minimum Current Transfer Ratio

400%

Standards/Approvals

UL, VDE, CSA

Series

HCPL

Automotive Standard

Product Details

Optocoupler, Darlington Transistor Output, Avago Technologies

This range of optocouplers with darlington output, from Avago Technologies, offer a high current transfer ratio with low input current requirements. The optocoupler devices use light emitting diodes (LEDs) optically coupled with integrated high gain photodetectors. They provide excellent input-output common mode transient immunity and guaranteed performance over temperatures of 0 to 70°C.

Potential applications include:
ground isolate most logic families
low input current line receiver
EIA RS-232C line receiver
telephone ring detector
line voltage status indicator – low input power dissipation

Optocouplers, Avago Technologies

View all in Optocouplers

Stock information temporarily unavailable.

₪ 144.75

₪ 14.48 Each (Supplied in a Tube) (ex VAT)

₪ 169.36

₪ 16.94 Each (Supplied in a Tube) (inc. VAT)

Broadcom DC Input Optocoupler, Surface, 8-Pin SOIC

Select packaging type

Production pack (Tube)

₪ 144.75

₪ 14.48 Each (Supplied in a Tube) (ex VAT)

₪ 169.36

₪ 16.94 Each (Supplied in a Tube) (inc. VAT)

Broadcom DC Input Optocoupler, Surface, 8-Pin SOIC

Stock information temporarily unavailable.

Select packaging type

Production pack (Tube)

quantity	Unit price
10 - 24	₪ 14.48
25 - 49	₪ 12.06
50+	₪ 11.52
