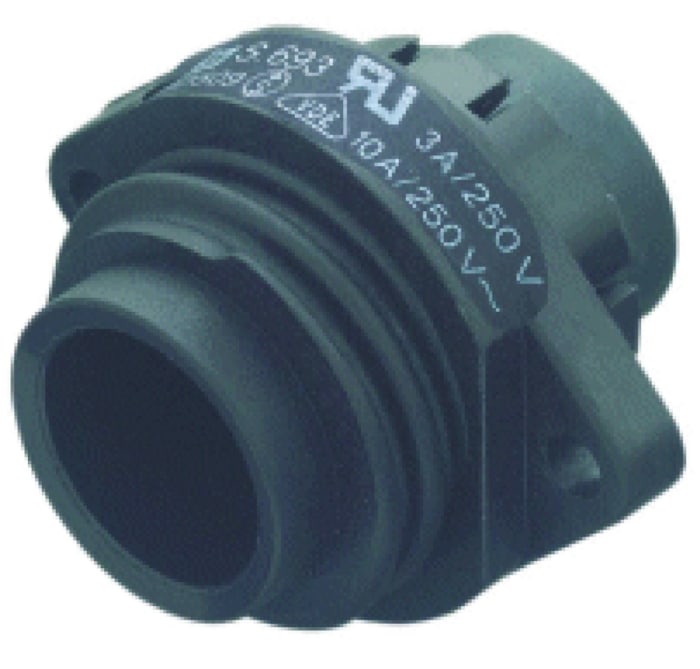

binder Circular Connector, 7 Contacts, Panel Mount, M3 Connector, Socket, Male, IP67, 693 Series

RS Stock No.: 734-5278Brand: binderManufacturers Part No.: 09-4203-00-07
brand-logo
View all in Industrial Circular Connectors

Technical documents

Specifications

Brand

Binder

Number of Contacts

7

Product Type

Circular Connector

Mount Type

Panel Mount

Connector Size

M3

Current

10A

Plug/Socket

Socket

Contact Gender

Male

IP Rating

IP67

Series

693

Orientation

Straight

Voltage

250.0 V

Mating Type

Screw-On

Shell Size

21.5

Minimum Operating Temperature

-40°C

Termination Type

Crimp

Maximum Operating Temperature

100°C

Housing Material

Polymer

Pole Format

6+PE

Standards/Approvals

No

Contact Plating

Silver

Contact Material

Brass

Country of Origin

Germany

Product details

Binder 693 Series Panel Mount Connectors - RD24 Range
