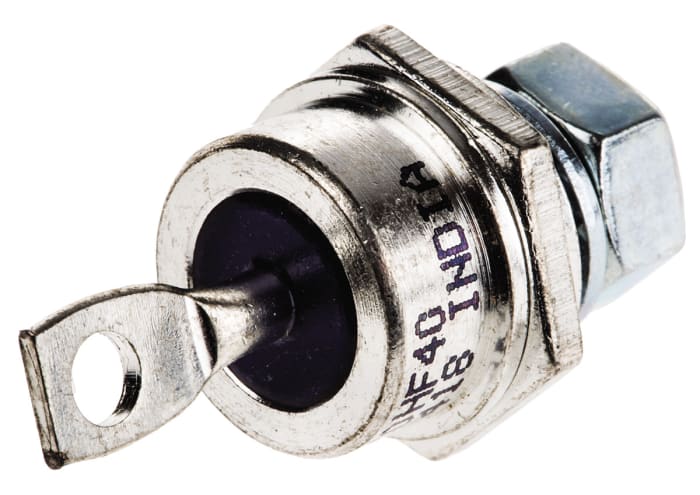

Vishay 600 V 70 A Diode Switching 2-Pin DO-203AB
Technical documents
Specifications
Brand
VishayProduct Type
Diode
Mount Type
Screw
Package Type
DO-203AB
Maximum Continuous Forward Current If
70A
Peak Reverse Repetitive Voltage Vrrm
600V
Series
VS-70HF
Diode Configuration
Stud Cathode
Rectifier Type
Switching
Pin Count
2
Peak Reverse Current Ir
9mA
Minimum Operating Temperature
-65°C
Peak Non-Repetitive Forward Surge Current Ifsm
1.3kA
Maximum Forward Voltage Vf
1.35V
Maximum Operating Temperature
180°C
Width
17.35 mm
Height
22.9mm
Length
20.02mm
Diameter
17.4 mm
Standards/Approvals
No
Automotive Standard
No
Product details
Standard Recovery Rectifiers, over 40A
Versatile and high-efficiency Standard Recovery Power Diodes in industry-standard package styles.
Diodes and Rectifiers, Vishay Semiconductor
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stock information temporarily unavailable.
₪ 67.05
₪ 67.05 Each (ex VAT)
₪ 78.45
₪ 78.45 Each (inc. VAT)
1
₪ 67.05
₪ 67.05 Each (ex VAT)
₪ 78.45
₪ 78.45 Each (inc. VAT)
Stock information temporarily unavailable.
1
| quantity | Unit price |
|---|---|
| 1 - 4 | ₪ 67.05 |
| 5 - 19 | ₪ 61.95 |
| 20 - 49 | ₪ 59.54 |
| 50 - 99 | ₪ 54.94 |
| 100+ | ₪ 53.18 |
