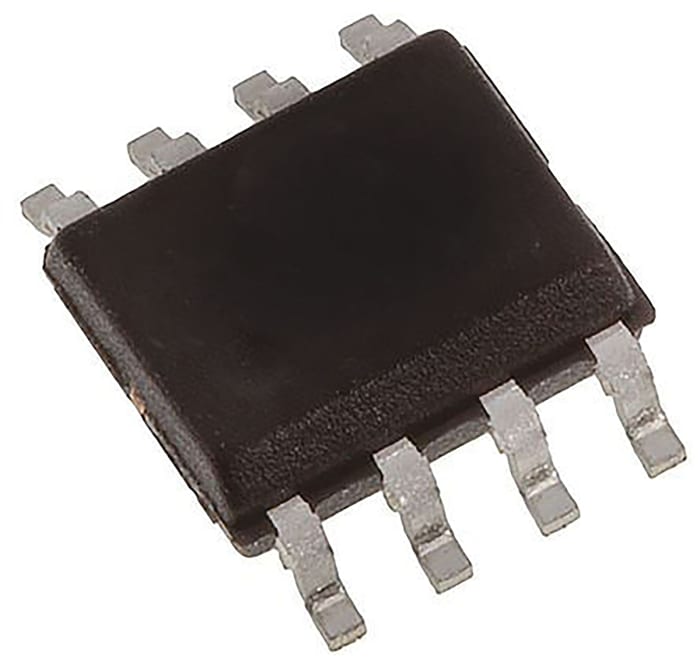

TLC2272CDR Texas Instruments, Precision, Op Amp, RRO, 2.2MHz, 5 → 15 V, 8-Pin SOIC
Technical documents
Specifications
Brand
Texas InstrumentsAmplifier Type
Precision
Mounting Type
Surface Mount
Package Type
SOIC
Power Supply Type
Dual, Single
Number of Channels per Chip
2
Pin Count
8
Typical Single Supply Voltage
5 → 15 V
Typical Gain Bandwidth Product
2.2MHz
Typical Dual Supply Voltage
±3 V, ±5 V
Typical Slew Rate
3.6V/µs
Maximum Operating Temperature
+70 °C
Minimum Operating Temperature
0 °C
Typical Voltage Gain
105 dB
Rail to Rail
Rail to Rail Output
Height
1.58mm
Dimensions
4.9 x 3.91 x 1.58mm
Length
4.9mm
Width
3.91mm
Typical Input Voltage Noise Density
50nV/√Hz
Product details
LinCMOS Operational Amplifiers
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
₪ 79.58
₪ 15.915 Each (In a Pack of 5) (ex VAT)
₪ 93.11
₪ 18.621 Each (In a Pack of 5) (inc. VAT)
Standard
5
₪ 79.58
₪ 15.915 Each (In a Pack of 5) (ex VAT)
₪ 93.11
₪ 18.621 Each (In a Pack of 5) (inc. VAT)
Stock information temporarily unavailable.
Standard
5
Stock information temporarily unavailable.
| quantity | Unit price | Per Pack |
|---|---|---|
| 5 - 20 | ₪ 15.915 | ₪ 79.58 |
| 25 - 95 | ₪ 12.885 | ₪ 64.42 |
| 100 - 245 | ₪ 10.455 | ₪ 52.28 |
| 250 - 495 | ₪ 10.17 | ₪ 50.85 |
| 500+ | ₪ 9.90 | ₪ 49.50 |
