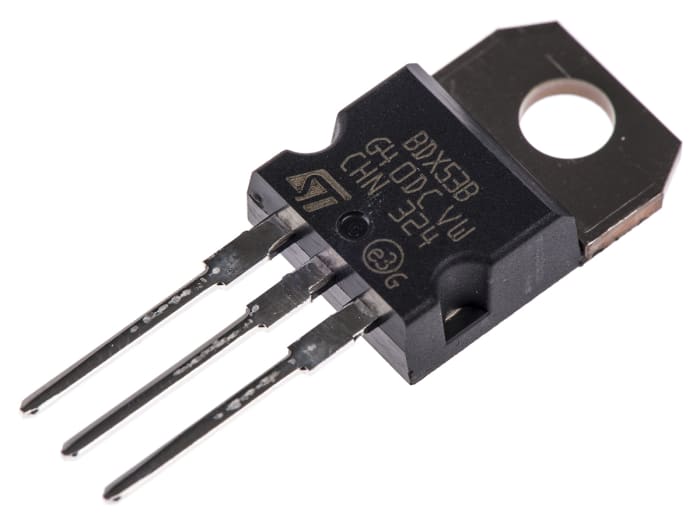

STMicroelectronics BDX53B NPN Darlington Transistor, 8 A 80 V HFE:750, 3-Pin TO-220
Technical documents
Specifications
Brand
STMicroelectronicsTransistor Type
NPN
Maximum Continuous Collector Current
8 A
Maximum Collector Emitter Voltage
80 V
Maximum Emitter Base Voltage
5 V
Package Type
TO-220
Mounting Type
Through Hole
Pin Count
3
Transistor Configuration
Single
Number of Elements per Chip
1
Minimum DC Current Gain
750
Maximum Base Emitter Saturation Voltage
2.5 V
Maximum Collector Base Voltage
80 V
Maximum Collector Emitter Saturation Voltage
2 V
Maximum Collector Cut-off Current
0.2mA
Dimensions
10.4 x 4.6 x 9.15mm
Width
4.6mm
Height
9.15mm
Maximum Operating Temperature
+150 °C
Minimum Operating Temperature
-65 °C
Length
10.4mm
Product details
NPN Darlington Transistors, STMicroelectronics
Bipolar Transistors, STMicroelectronics
A broad range of NPN and PNP Bipolar Transistors from STMicroelectronics including General Purpose, Darlington, Power and High-Voltage devices in both SMT and Through-hole packages.
