Technical Documents
Specifications
Brand
SickProduct Type
Photoelectric Sensor
Sensor Style
Rectangular
Detection Type
Through Beam
Output Type
PNP
Terminal Type
4-Pin Connector
Maximum DC Voltage
30V dc
Interface Type
4-Pin, M12 Connector
Light Source
LED
Minimum Operating Temperature
-25°C
IP Rating
IP67
Maximum Current
100mA
Maximum Operating Temperature
55°C
Standards/Approvals
EN 60947-5-2:11
Response Time
500μs
Hazardous Area Certification
EN IEC 63000
Series
W250-2
Housing Material
Plastic
Mount Type
Threaded, Through Hole
Detection Range
0 → 50 m
Country of Origin
China
Product Details

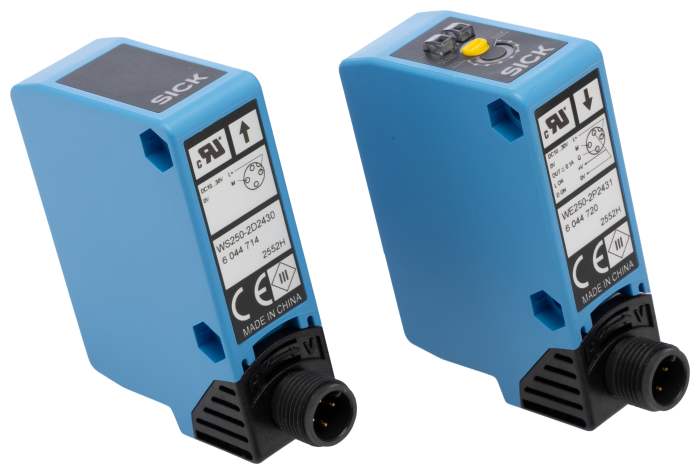

This photoelectric sensor detects objects using a through-beam LED arrangement and is designed for industrial automation environments. It is housed in a robust plastic enclosure with a rectangular profile and connects via an M12 four‑pin interface, making it suitable for integration into control systems where discrete object detection and reliable signal transmission are required.
The unit uses an M12 four‑pin connector for straightforward cable termination and shielded cabling compatibility.
The sensor employs a plastic housing which offers lightweight durability and resistance to common industrial contaminants.
The sensors PNP switching and defined maximum current specification help maintain clean switching behaviour when paired with appropriate wiring practices.
The product supports threaded and through‑hole mounting for fixed, repeatable positioning on machinery.
The device conforms to EN 60947‑5‑2 and follows the cited EN IEC compliance for electromagnetic and safety‑related characteristics.
Stock information temporarily unavailable.
P.O.A.
1
P.O.A.
Stock information temporarily unavailable.
1
