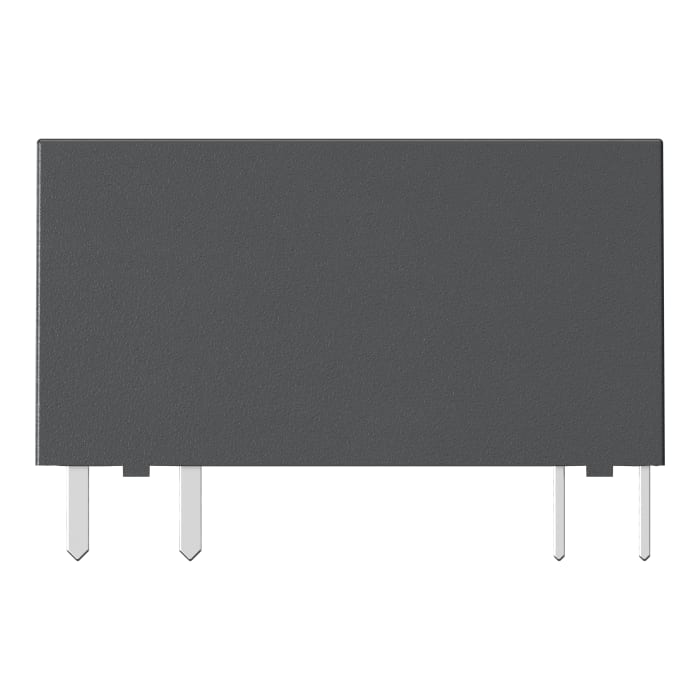

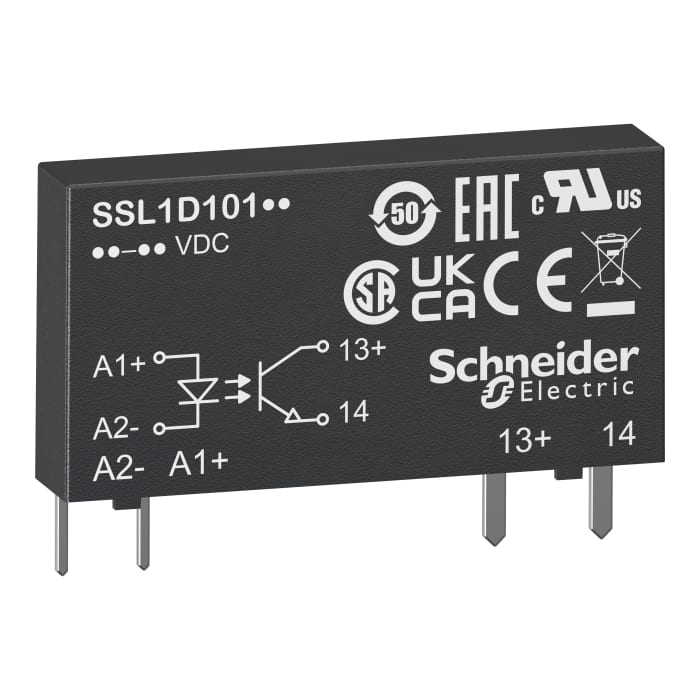

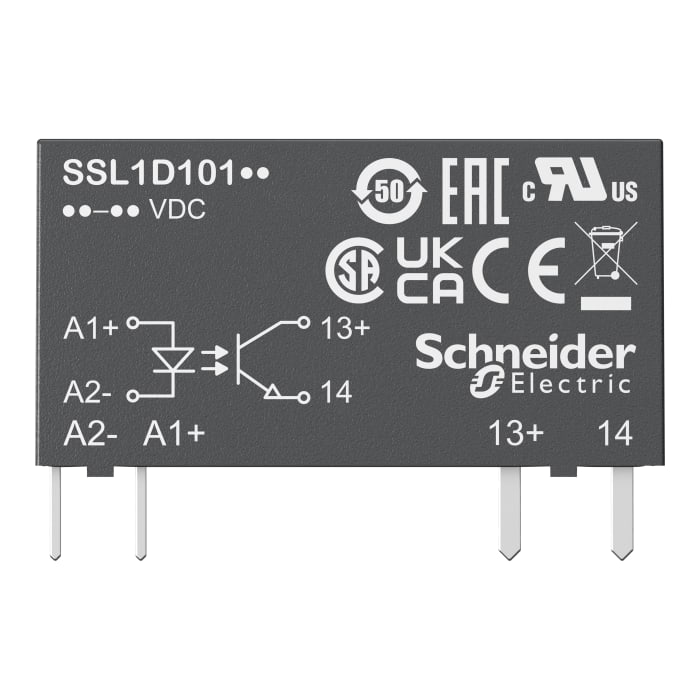

Schneider Electric Harmony Relay Series Solid State Relay, 3.5 A Load, PCB Mount, 24 V dc Load, 12V dc Control
Technical documents
Specifications
Brand
Schneider ElectricMaximum Load Current
3.5A
Product Type
Solid State Relay
Mount Type
PCB
Maximum Load Voltage
24V dc
Minimum Load Voltage
1V dc
Minimum Control Voltage
3V dc
Maximum Control Voltage
12V dc
Series
Harmony Relay
Terminal Type
PCB Terminal
Contact Configuration
SPST
Minimum Operating Temperature
-20°C
Switching Function
DC Switching
Maximum Operating Temperature
80°C
Height
15mm
Length
28mm
Standards/Approvals
UL, CSA, CE
Width
5mm
Off State Leakage Current
0.001mA
Capacitance
1.5pF
Output Type
MOSFET
Country of Origin
Mexico
Product details
Zelio SSL Solid State Slim Relays
Schneider Electric Zelio solid state relays provide a compact and innovative solution for a wide variety of applications with interfacing control and load switching. The slim SSL series are available with several input and output configurations for both AC and DC switching applications. Compact size and modular design reduces space and allows easy mounting on the socket.
SSL series plug-in type relays can be mounted directly on a PCB or DIN Rail mounted with a socket. DIN Rail sockets are available in screw connector or spring terminal types.
Zero voltage switching or Random switching
Easy maintenance
High switching frequency
Resistance to shock, vibration and contamination
Long life span
