Technical Documents
Specifications
Brand
SchmersalProduct Type
Solenoid Interlock Switch
Actuator Included
No
Series
RSS 36
Actuator Type
Standard Coded
Conduit Entry
M12
Terminal Type
Plug-In
Contact DC Voltage
26.4V dc
Contact Current
0.6A
Contact AC Voltage
24V ac
Housing Material
Plastic
Depth
35mm
Length
27mm
Hazardous Area Certification
No
Standards/Approvals
CE Listed, EN 62061, Ecolab, IEC 61508, cULus Listed, EN ISO 13849-1, IEC 60947-5-3, TUV
Width
108.2mm
IP Rating
IP65, IP69K, IP67
Supply Voltage
24V dc
Country of Origin
Germany
Product Details

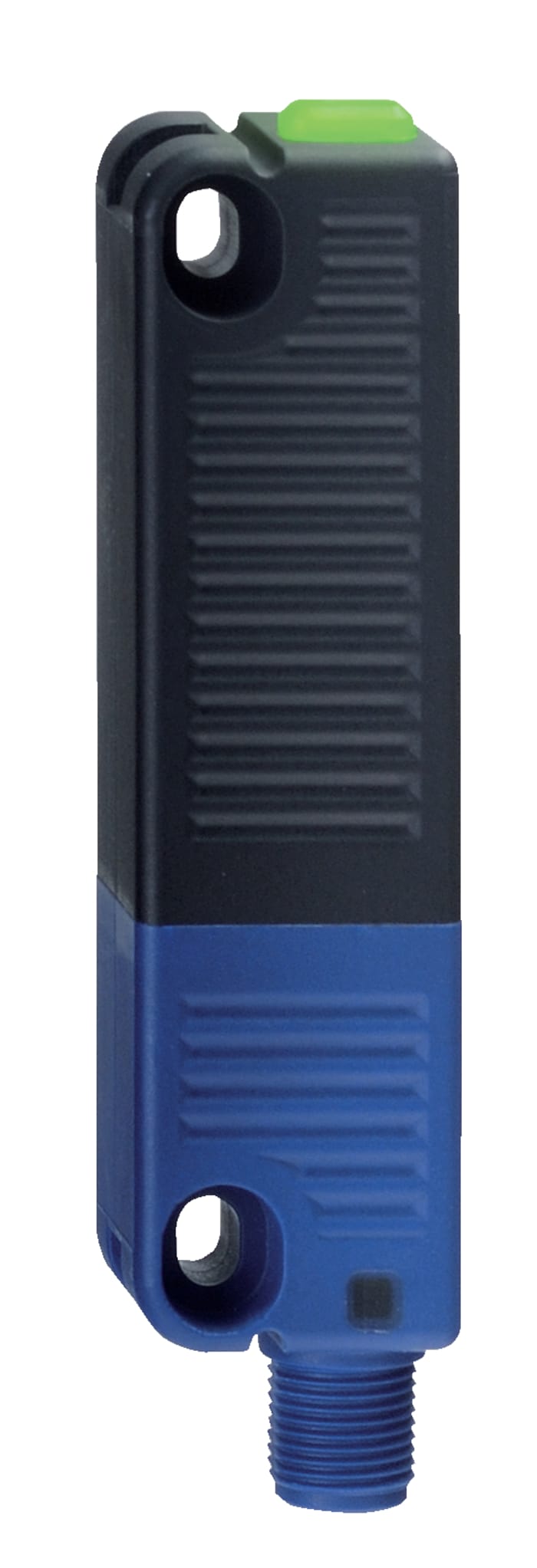

Need a tamper-proof safety device? This electronic safety sensor from Schmersal features an individually coded sensor and actuator for enhance protection against tampering. It can also compensate for misalignment between the actuator and sensor for uninterrupted operation. The safety cables are monitored for wire breakage and external voltage surges, enhancing the reliability of the product. A strong thermoplastic housing offers good resistance to abrasion, dirt and moisture to keep the unit in optimal working condition.
To assemble this sensor along with a flat-mounted actuator, a 25mm screw length is usually sufficient. When mounting the actuator upright, it's recommended to use screws with a length of 30mm.
The RSS36 electronic safety sensor with unique diagnosis meets the highest safety requirements, even when series-wired. It also features new coding functions for the uniform allocation of the actuator to the sensor, this is realised through the integrated RFID technology. The RSS36 has three different coding variants to enable an optimal conformation to the required protection against tampering. The universal mounting features and the optional latching function provides a smooth and rational integration in separating safety guards.
Actuators must be ordered separately.
Stock no. 880-1769 comes with a latching magnet.
Stock no. 880-1763 comes without a latching magnet.
TUV, cULus, ECOLAB.
EN ISO 13849-1, IEC 61508, IEC 60947-5-3, EN 62061.
Stock information temporarily unavailable.
₪ 658.17
₪ 658.17 Each (ex VAT)
₪ 770.06
₪ 770.06 Each (inc. VAT)
1
₪ 658.17
₪ 658.17 Each (ex VAT)
₪ 770.06
₪ 770.06 Each (inc. VAT)
Stock information temporarily unavailable.
1
