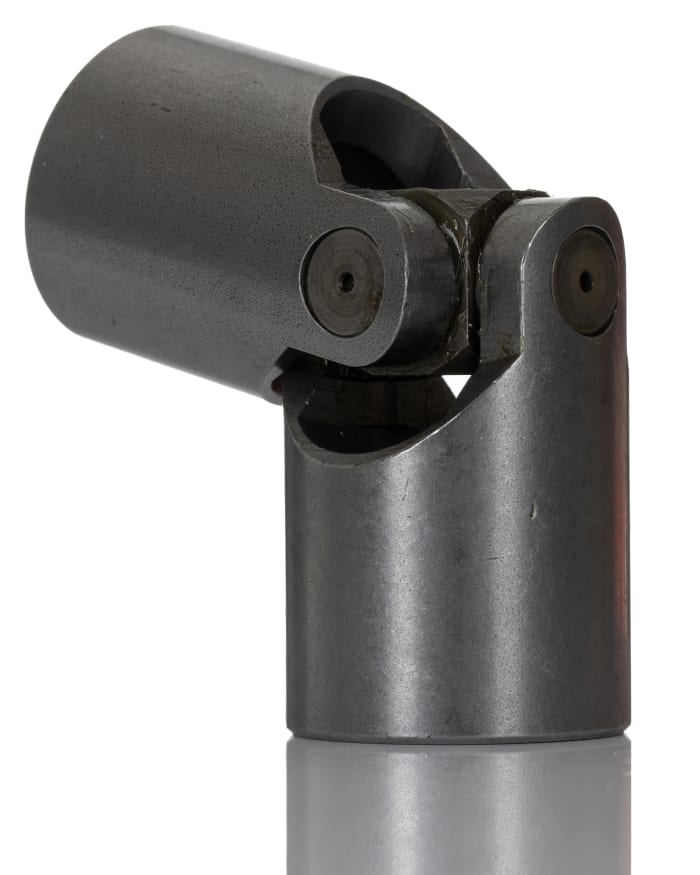

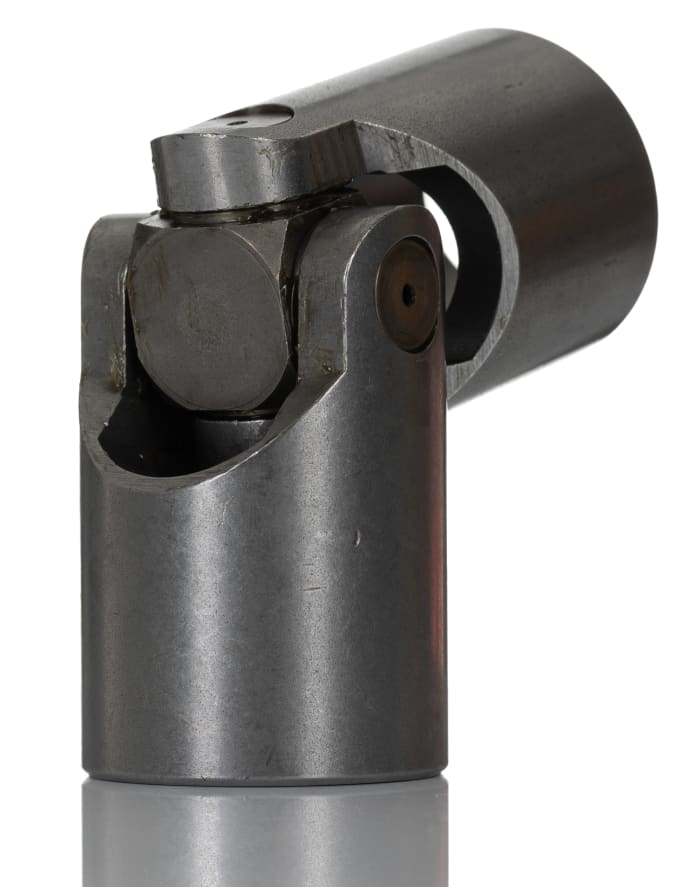

RS PRO Universal Joint, 1, Plain, Bore 25mm, 108mm Length

RS PRO Universal Joint, Single, Plain, Bore 25 mm, 108 mm Length

Universal joints for connecting a wide range of equipment where there is a misalignment greater than 5°. Suitable for connecting line shafts, drive shafts, conveyors and most types of rotating machinery to a prime mover. Plain bearing universal couplings are suitable for applications with a maximum speed of 1000 rpm and an operating angle of between 3 and 45 degrees. The use of a gaiter and regular lubrication is recommended with plain bearing couplings to ensure longevity of service.

Features and Benefits

• Plain single-joint type
• Made from steel
• Bored hub type
• Maximum speed of 1000 rpm
• Hub outer diameter of 42 mm
• Bore size of 25 mm
• Overall length of 108 mm
• Peak torque of 600 Nm
• Maximum working angle of 45°
