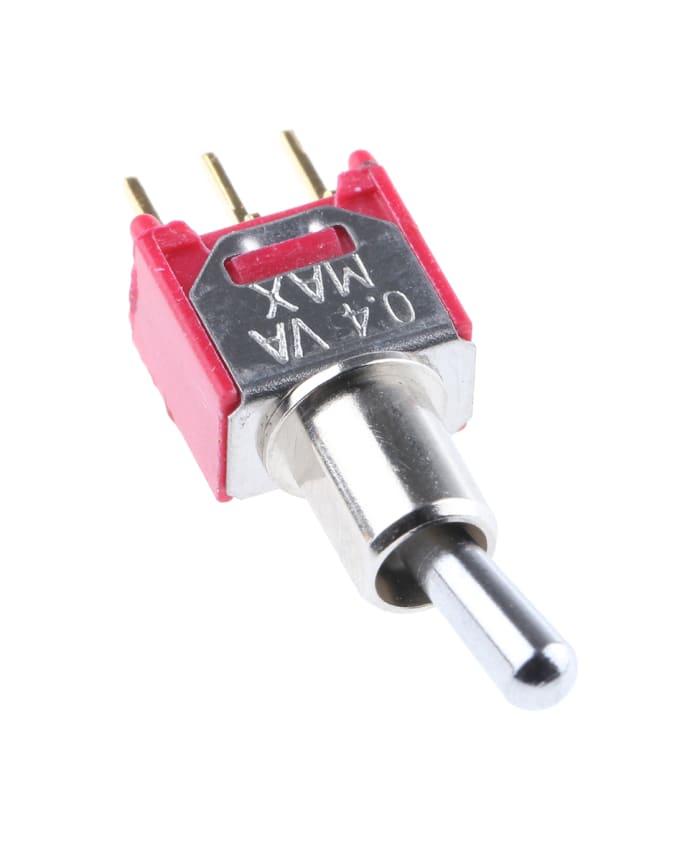

RS PRO Toggle Switch, PCB Mount, On-(On), SPDT, Through Hole Terminal
Technical documents
Specifications
Brand
RS ProContact Configuration
SPDT
Switch Operation
On-(On)
Contact Current Rating
400 mA @ 20 V dc
Mounting Type
PCB
Terminal Type
Through Hole
Actuator Length
5.33mm
Actuator Material
Brass
Contact Resistance
0.02Ω
Contact Material
Gold Over Nickel Plated Brass
Operating Temperature Range
-30 → +85°C
Maximum Operating Temperature
+85°C
Standards Met
UL Listed
Minimum Operating Temperature
-30°C
Product details
Toggle Switches, Ultra-Min Gold Contacts, Plain Bush
Switches suitable for PCB mounting with pins arranged on a 0.1 in pitch grid
Right angle versions have two additional support pins
Ideal where either panel space or board size is at a premium
Suitable for low level switching applications
Terminals epoxy sealed against flux and dirt
Gold contacts
Chrome Plated Brass actuator and Dially Phthalate case
Number of operations: 60000 (2 pos), 30000 (3 pos)
Miniature Lockable Toggle Switches
Approvals
UL E187490
Stock information temporarily unavailable.
Please check again later.
₪ 54.43
Each (ex VAT)
₪ 63.68
Each (inc. VAT)
1
₪ 54.43
Each (ex VAT)
₪ 63.68
Each (inc. VAT)
1
Buy in bulk
| quantity | Unit price |
|---|---|
| 1 - 49 | ₪ 54.43 |
| 50 - 99 | ₪ 42.64 |
| 100 - 249 | ₪ 28.47 |
| 250+ | ₪ 23.81 |
