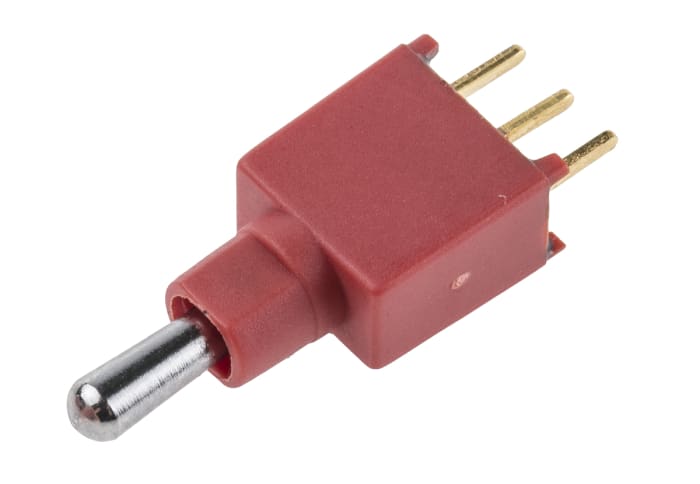

RS PRO Toggle Switch, PCB Mount, On-Off-On, SPDT, Through Hole Terminal
Technical documents
Specifications
Brand
RS ProContact Configuration
SPDT
Switch Operation
On-Off-On
Contact Current Rating
400 mA @ 20 V dc
Mounting Type
PCB
Terminal Type
Through Hole
IP Rating
IP67
Actuator Length
6.1mm
Actuator Material
Brass
Contact Material
Gold
Contact Resistance
20mΩ
Standards Met
RoHS & Lead Free
Minimum Operating Temperature
-30°C
Operating Temperature Range
-30 → +85°C
Mechanical Life
30000Cycles
Maximum Operating Temperature
+85°C
Product details
Straight Mounted Toggle Switches
Toggle switches designed for low-level signal switching
Terminations sealed with epoxy resin
Brass actuator with O-ring seal to IP67
Glass filled nylon 6//6 case (UL94V-0)
Gold contacts
Miniature Lockable Toggle Switches
Approvals
UL E187490
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stock information temporarily unavailable.
Please check again later.
₪ 33.20
₪ 33.20 Each (ex VAT)
₪ 38.84
₪ 38.84 Each (inc. VAT)
1
₪ 33.20
₪ 33.20 Each (ex VAT)
₪ 38.84
₪ 38.84 Each (inc. VAT)
1
Buy in bulk
| quantity | Unit price |
|---|---|
| 1 - 49 | ₪ 33.20 |
| 50 - 99 | ₪ 27.12 |
| 100 - 249 | ₪ 13.32 |
| 250+ | ₪ 11.82 |
