Technical Documents
Specifications
Brand

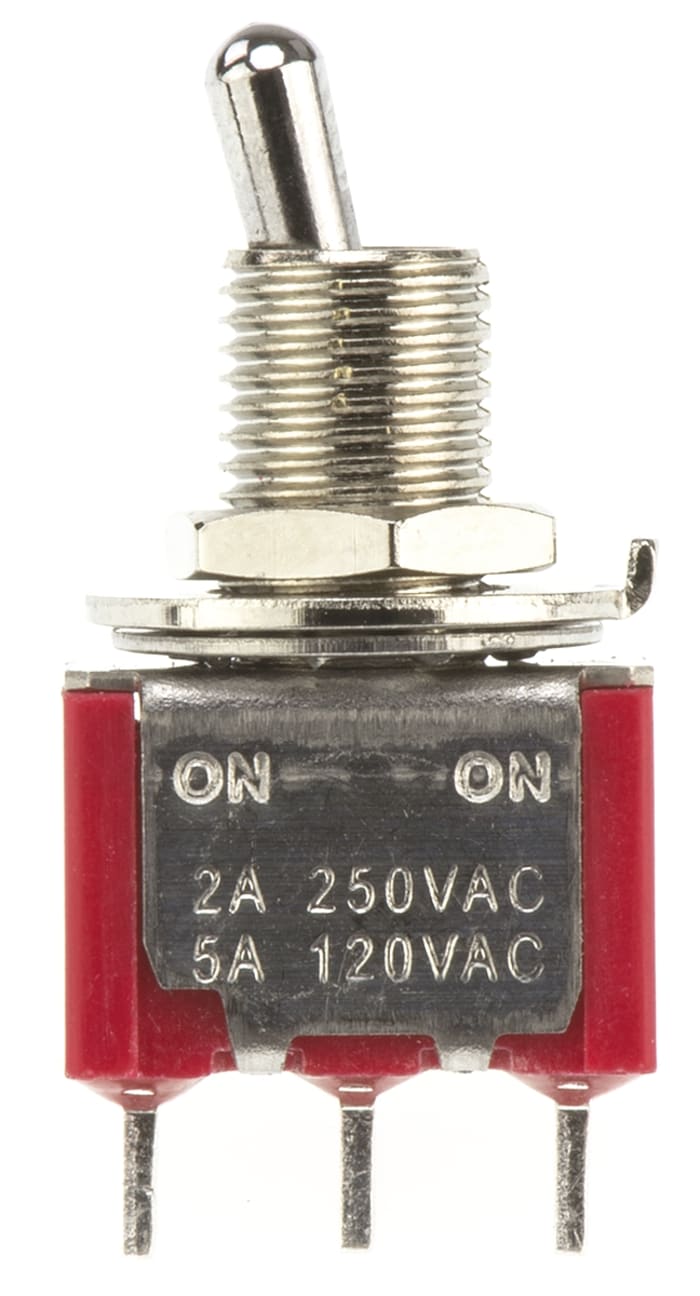

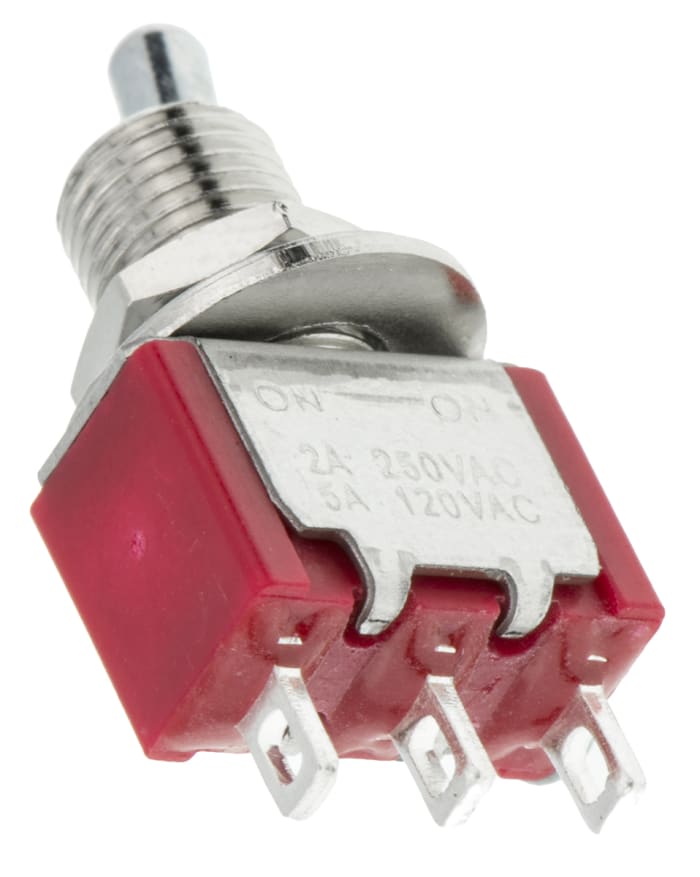

RS ProProduct Type
Toggle Switch
Contact Configuration
SPDT
Switch Operation
On-On
Switch Contact Current
5A
Mount Type
Panel
Terminal Type
Solder
Illuminated
No
Panel Cutout Size
6.35 mm
Actuator Length
5.08mm
Minimum Operating Temperature
-30°C
Contact DC Voltage
26V dc
Contact AC Voltage
112V ac
Actuator Material
Chrome Plated Brass
Maximum Operating Temperature
85°C
Switch Configuration
None-Off-On
Length
5.08mm
Standards/Approvals
CE, CSA, RoHS, UL
Series
1MS
Mechanical Life
40000Cycles
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
Stock information temporarily unavailable.
₪ 27.15
₪ 27.15 Each (ex VAT)
₪ 31.77
₪ 31.77 Each (inc. VAT)
Standard
1
₪ 27.15
₪ 27.15 Each (ex VAT)
₪ 31.77
₪ 31.77 Each (inc. VAT)
Stock information temporarily unavailable.
Standard
1
| quantity | Unit price |
|---|---|
| 1 - 49 | ₪ 27.15 |
| 50 - 99 | ₪ 22.38 |
| 100 - 249 | ₪ 11.13 |
| 250+ | ₪ 9.72 |
