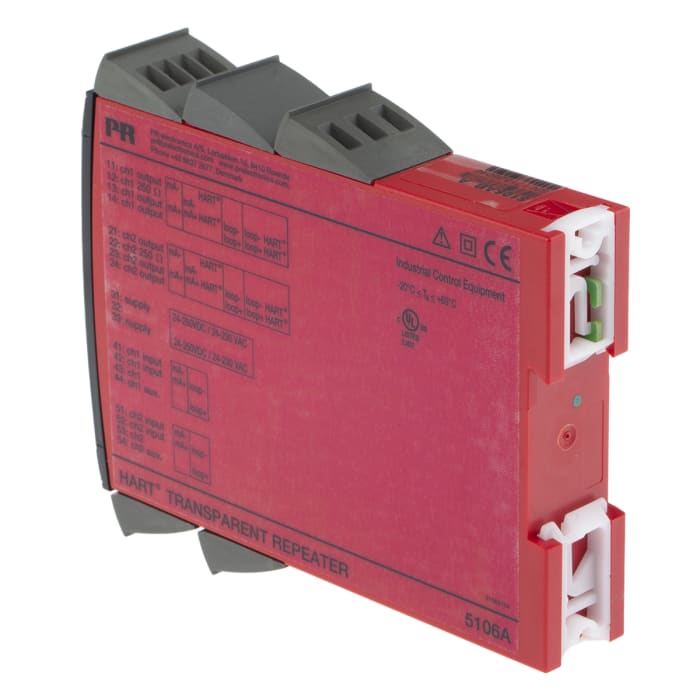

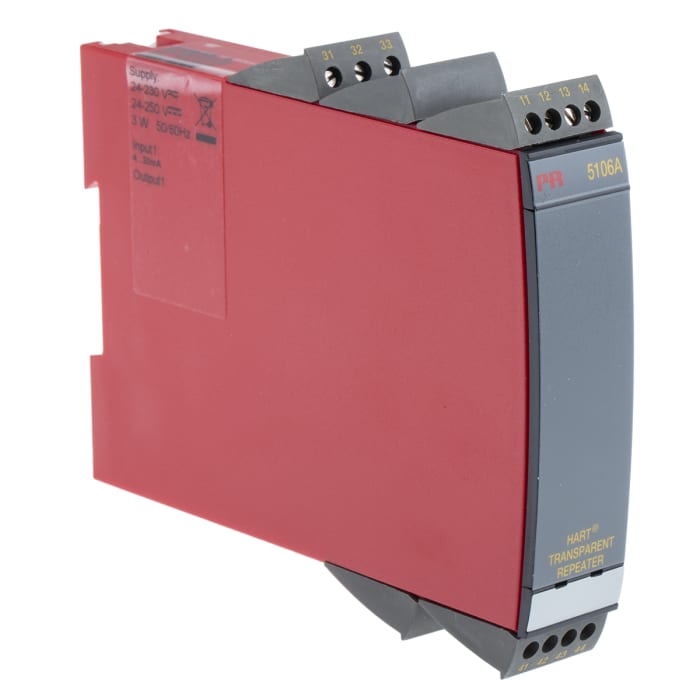

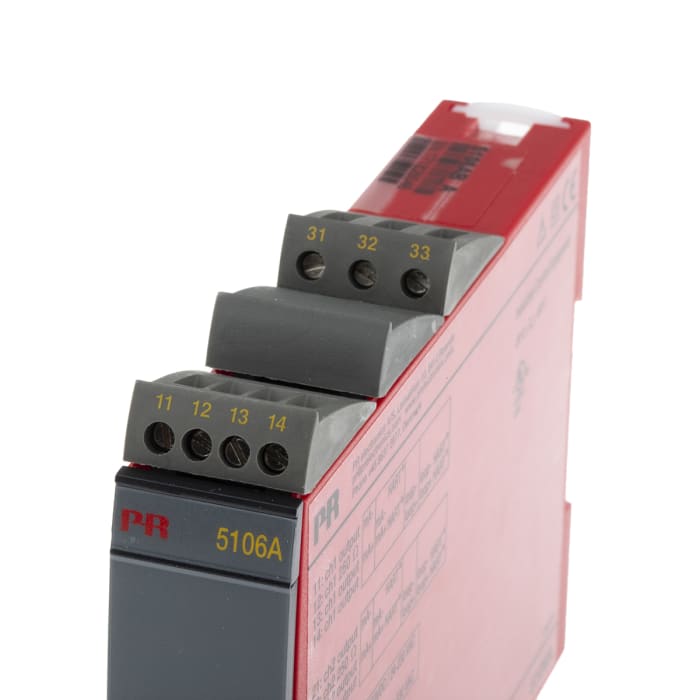

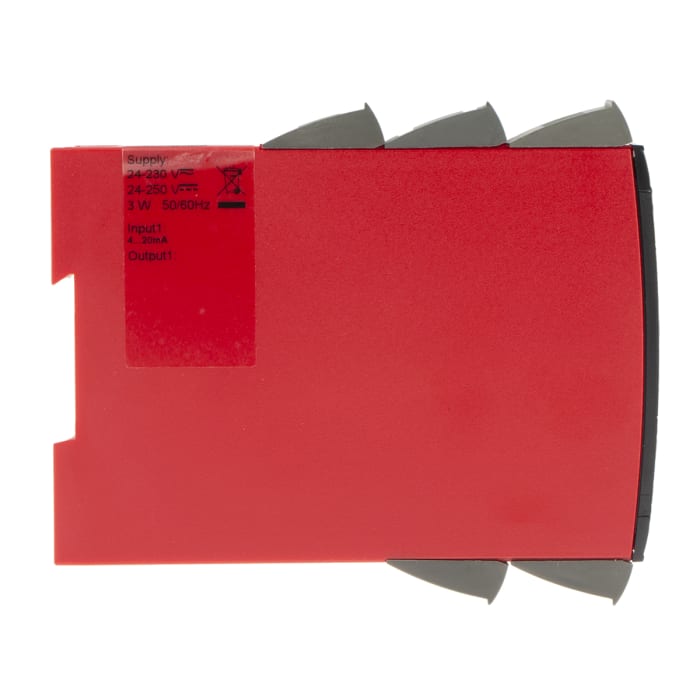

PR Electronics 5106A Series Transparent Repeater, 19.2 → 300 V dc, 21.6 → 253V ac Supply

RS Stock No.: 136-8689Brand: PR ElectronicsManufacturers Part No.: 5106ABA
brand-logo
View all in Signal Conditioners

Technical documents

Specifications

Brand

PR Electronics

Module Type

Hart Transparent Repeater

Supply Voltage

19.2 → 300 V dc, 21.6 → 253V ac

Operating Temperature Range

-20 → +60°C

Series

5106A

Minimum Operating Temperature

-20°C

Maximum Operating Temperature

+60°C

Interface

HART

Number of Channels

1

Country of Origin

Denmark

Product details

5106A HART Transparent Repeater

PR Electronics 5106A HART transparent repeater is a signal isolator with 2-way HART communication for 2-wire transmitters installed in the hazardous area. The 5106A signal conditioner is based on microprocessor technology for gain and offset. The analogue signal is transmitted at a response time of less than 25 ms. Mounted vertically or horizontally on a DIN rail. As the devices can be mounted without distance between neighbouring units, up to 84 channels can be mounted per meter.

Features and Benefits

• 3.75 kV ac galvanic isolation
• Inputs, outputs and supply are floating and galvanically separated
• Output can be connected either as an active current transmitter or as a 2-wire transmitter
• Low response time
• Universal supply by AC or DC
• DIN Rail mounting (vertically or horizontally)

What is HART Protocol?

The HART protocol is a low speed, digital communications scheme that is carried on a 4 to 20 mA current signal. As 4 to 20 mA loops are commonly used in industry, the HART protocol is easy to implement, easy to use, and easy to troubleshoot. Devices that communicate via HART are popular in many industries.
