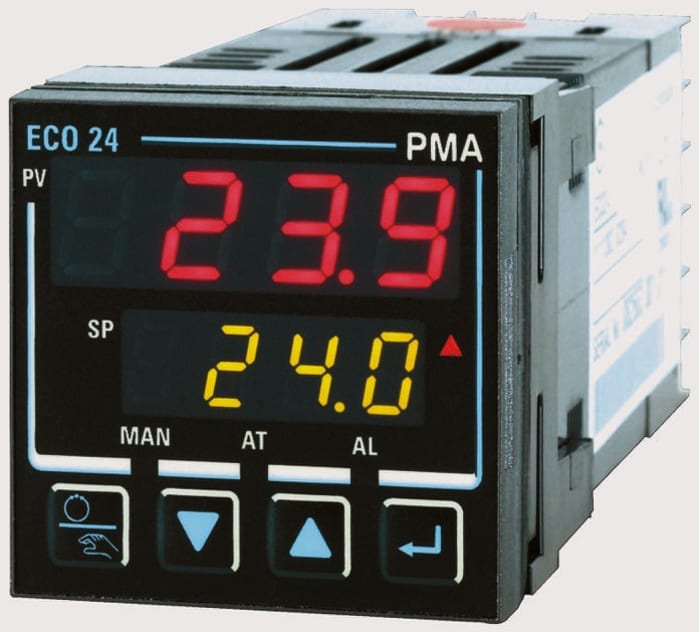

P.M.A ECO24 Panel PID Temperature Controller 2 Input, 3 Output 264V ac PD, PID, PI, P

Name: P.M.A ECO24 Panel PID Temperature Controller 2 Input, 3 Output 264V ac PD, PID, PI, P
Brand: P.M.A
SKU: 6079210
Availability: LimitedAvailability

RS Stock No.: 607-9210Brand: P.M.AManufacturers Part No.: ECO24-111-1300-000

Image representative of range only

View all in Temperature Controllers

Technical Documents

Specifications

Brand

P.M.A

Product Type

PID Temperature Controller

Number of Inputs

Number of Outputs

Minimum Operating Temperature

0°C

Maximum Operating Temperature

55°C

Terminal Type

Screw

Control Type

PD, PID, PI, P

Maximum Supply Voltage

264V ac

Auxiliary Power Supply

24 V dc

Digital Comms

RS485/Modbus RTU/ASCII

Diagnostics

Sensor Or Control Loop Fault, Device Not Configured, Process Value Outside Measuring Range, Module Fault

Maximum Voltage

280V

Display Type

4 digit LED

Length

48mm

Standards/Approvals

cULus (File: E 208286), EN 61010-1, EN 61326

Width

48mm

IP Rating

IP66

Series

ECO24

Mount Type

Panel

Input Type

Current, RTD, Voltage, Thermocouple

Panel Depth

110mm

Country of Origin

United Kingdom

Product Details

PMA ECO 24 Temperature Controller

Due to its extremely compact dimensions, the PMA ECO 24 can be installed even in the smallest machines. Its universal input and the flexible modular concept for a wide range of output types enable the controller to be adapted perfectly to the most varied automation tasks.

Similarly, the unit is configurable as signaller, continuous, 2-point or 3-point PMA controller for heating or cooling, as well as heating/cooling tasks, i.e. for universal applications. Moreover, ’split-range’ operation is possible in all combinations (e.g. continuous/switching), and various alarm functions put a finishing touch to the comprehensive package.

• High-precision universal input
• Accurate control behaviour with 250 ms scanning cycle
• Up to three plug-in output modules
• formA, V, relay, SSR driver or Triac
• Output function selectable as control
• Alarm, or measurement signal
• Comprehensive galvanic isolation
• External contact for 2nd setpoint
• Auto/Manual switchover
• Selectable setpoint ramp
• RS 485 with Modbus RTU protocol
• Front panel protection mode IP66
• cULus recognised

PMA Temperature Controllers
