Phoenix Contact PT 2.5/ 4-5.0-H Series PCB Terminal Block, 5mm Pitch, Through Hole Mount, Screw Termination

RS Stock No.: 548-7294Brand: Phoenix ContactManufacturers Part No.: 1935792
brand-logo
View all in PCB Terminal Blocks

Technical documents

Specifications

Pitch

5mm

Mounting Type

Through Hole

Termination Method

Screw

Current Rating

32A

Colour

Green

Voltage Rating

250 V

Series

PT 2.5/ 4-5.0-H

Material

Nylon

Country of Origin

Germany

Product details

Phoenix Contact COMBICON PT 5.0mm PCB Terminal Blocks

A range of COMBICON Compact PCB Screw Terminal Blocks in the PT 1.5 and PT 2.5 Series with 5.0 mm pitch.

Features and Benefits

• High terminal block capacity, thanks to rectangular terminal block space
• 5.0 mm pitch
• Highly flexible conductor protection for easy, repeated connecting
• Rugged design for larger cross sections or high current carrying capacity
• Plus/minus screw
• PT 1.5 types accept solid and flexible wires of 0.2 mm² to 2.5 mm² (26-14 AWG) and are rated at 20 A/250 V max
• PT 2.5 types accept solid and flexible wires of 0.5 mm² to 4.0 mm² (20-10 AWG) and are rated at 32 A/250 V max
• PCB hole diameter 1.3 mm
• Flammability rating UL 94V-0

Approvals

UL, CUL, CSA, PCT, VDE, CCA.

Standards

DIN EN 60512-5-2:2003-01.

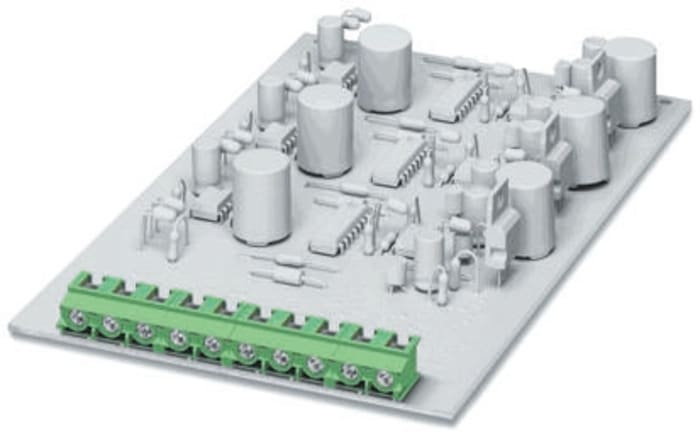

Phoenix Contact COMBICON 5.0mm PCB Terminal Blocks

Ideate. Create. Collaborate

JOIN FOR FREE

No hidden fees!

design-spark
design-spark
  • Download and use our DesignSpark software for your PCB and 3D Mechanical designs
  • View and contribute website content and forums
  • Download 3D Models, Schematics and Footprints from more than a million products
Click here to find out more
Stock information temporarily unavailable.

₪ 45.68

₪ 9.135 Each (In a Pack of 5) (ex VAT)

₪ 53.44

₪ 10.688 Each (In a Pack of 5) (inc. VAT)

Phoenix Contact PT 2.5/ 4-5.0-H Series PCB Terminal Block, 5mm Pitch, Through Hole Mount, Screw Termination

₪ 45.68

₪ 9.135 Each (In a Pack of 5) (ex VAT)

₪ 53.44

₪ 10.688 Each (In a Pack of 5) (inc. VAT)

Phoenix Contact PT 2.5/ 4-5.0-H Series PCB Terminal Block, 5mm Pitch, Through Hole Mount, Screw Termination
Stock information temporarily unavailable.

Stock information temporarily unavailable.

Please check again later.

quantityUnit pricePer Pack
5 - 120₪ 9.135₪ 45.68
125 - 370₪ 8.58₪ 42.90
375 - 995₪ 8.13₪ 40.65
1000 - 1995₪ 7.695₪ 38.48
2000+₪ 7.275₪ 36.38
