Technical Documents
Specifications
Brand
PatliteSeries
LR7
Product Type
Light Module
Component Type
Light Element
Multifunction
Yes
Mount Type
Base
Sounder Type
No Sounder Component
Light Effect
Steady
Lens Colour
Blue
Lamp Included
Yes
Bulb Type
LED
Terminal Type
Twist and Lock
Maximum Supply Voltage
24V dc
Minimum Operating Temperature
-20°C
Maximum Operating Temperature
50°C
Height
40mm
Standards/Approvals
UL, CSA
Base Diameter
70mm
Hazardous Area Certification
No
IP Rating
IP65
Housing Colour
Blue
Country of Origin
Indonesia
Product Details

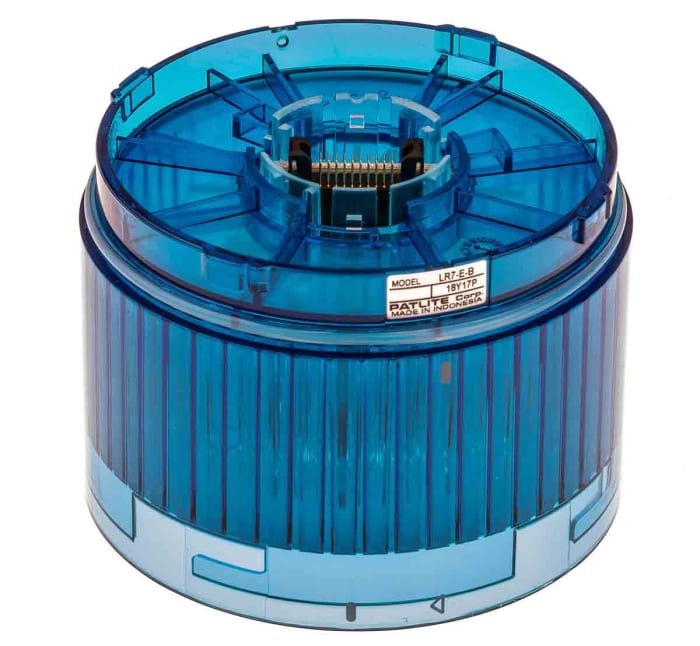

The Patlite LED light unit is an LED unit for LR7 series. Lights can be added or removed from signal towers without rewiring or reconfiguring hardware. It has a blue LED. Module units MUST be removed one at a time from the signal tower, from top to bottom, or the internal hardware can get damaged.
Stock information temporarily unavailable.
₪ 156.45
₪ 156.45 Each (ex VAT)
₪ 183.05
₪ 183.05 Each (inc. VAT)
1
₪ 156.45
₪ 156.45 Each (ex VAT)
₪ 183.05
₪ 183.05 Each (inc. VAT)
Stock information temporarily unavailable.
1
