Panasonic Panel For Use With PM4H-A Series

Multi-Function Timer Relay, PM4H-A

• 100 V → 240 Vac or 24 Vac/dc voltage input
• Large time range: (0.1 s → 500 h) 16 time ranges available for selection
• High switching capacity (5 A, 250 Vac)
• 2 changeover contacts
• 3 control inputs: stop, signal, reset
• DIN housing
• Protection rating IP50

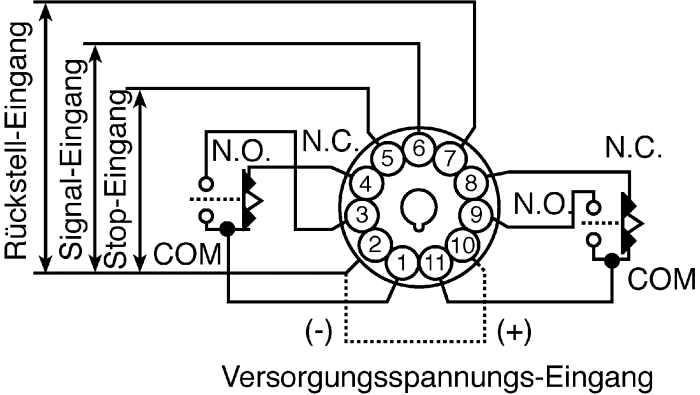

• 11-pin connection socket (accessible from back) for control panel assembly RS stock no. 403-869
• Frames for front plate assembly available separately (RS stock no. 113-8487)

Eight different functions can be selected

• Delay-on energisation
• Impulse-on (delayed)
• Impulse-on (immediately)
• Changer (1) (2)
• Drop out delay
• Impulse delay (one-shot)
• In / Impulse cycle
